9025 Series

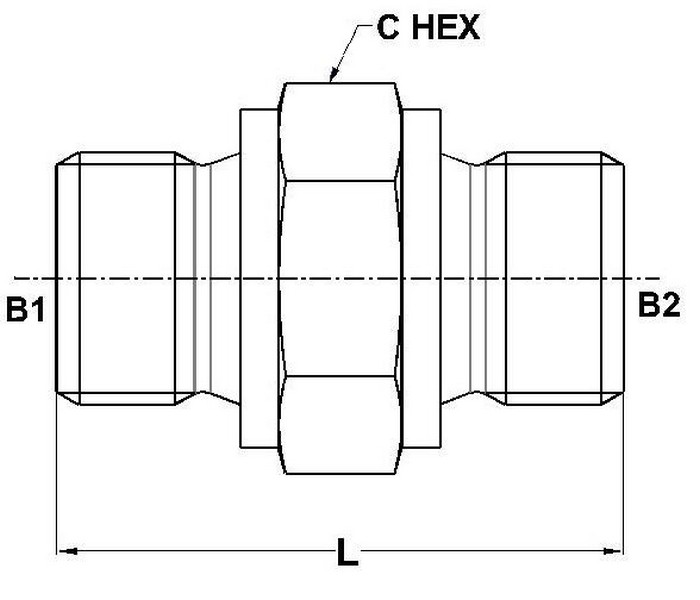

| PART NO.SIZE |
B1 BSPP |
B2 MM |
B1 DRILL |
B2 DRILL |
L LGTH |
C HEX |
| 9025-04-14 |
1/4-19 |
M14 x 1.5 |
4.7 |
7.5 |
30.0 |
19.0 |
| 9025-04-18 |
1/4-19 |
M18 x 1.5 |
4.7 |
11.0 |
31.5 |
24.0 |
| 9025-06-12 |
3/8-19 |
M12 x 1.5 |
7.9 |
6.0 |
32.0 |
22.0 |
| 9025-06-16 |
3/8-19 |
M16 x 1.5 |
7.9 |
9.0 |
32.0 |
22.0 |
| 9025-06-18 |
3/8-19 |
M18 x 1.5 |
7.9 |
11.0 |
32.5 |
24.0 |
| 9025-06-20 |
3/8-19 |
M20 x 1.5 |
7.9 |
12.5 |
33.0 |
27.0 |
| 9025-06-24 |
3/8-19 |
M24 X 1.5 |
7.9 |
15.5 |
37.5 |
32.0 |
| 9025-08-18 |
1/2-14 |
M18 x 1.5 |
11.1 |
11.0 |
36.0 |
27.0 |
| 9025-12-18 |
3/4-14 |
M18 x 1.5 |
16.7 |
11.0 |
40.0 |
32.0 |
| 9025-12-20 |
3/4-14 |
M20 x 1.5 |
16.7 |
12.5 |
42.0 |
32.0 |
| 9025-12-22 |
3/4-14 |
M22 X 1.5 |
16.7 |
14.0 |
42.0 |
32.0 |
| 9025-12-26 |
3/4-14 |
M26 x 1.5 |
16.7 |
18.0 |
44.0 |
32.0 |
| 9025-12-30 |
3/4-14 |
M30 x 2 |
16.7 |
21.0 |
46.0 |
36.0 |
