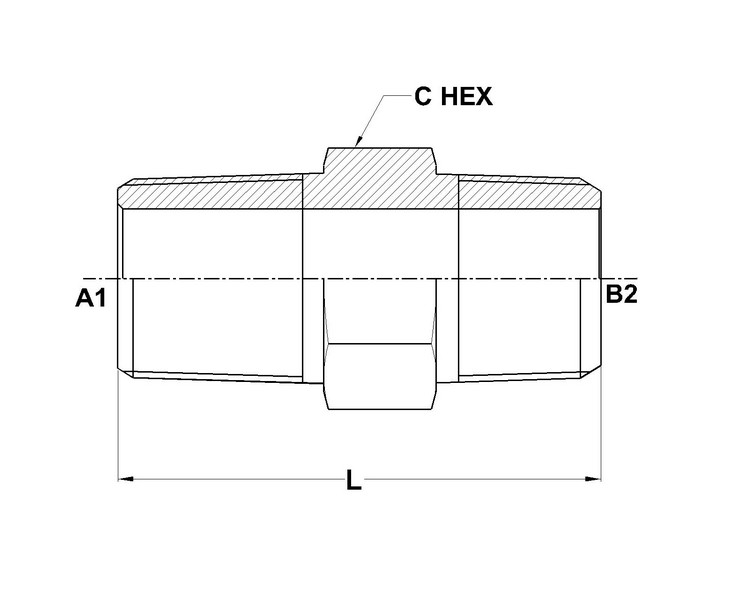

7030 Series
| PART NO.SIZE |
A1 NPTF |
B2 BSPT |
A1 DRILL |
B2 DRILL |
L LGTH |
C HEX |
| 7030-02-02 |
1/8-27 |
1/8-28 |
4.8 |
4.8 |
26.0 |
11.0 |
| 7030-04-04 |
1/4-18 |
1/4-19 |
7.0 |
7.0 |
35.8 |
14.0 |
| 7030-04-06 |
1/4-18 |
3/8-19 |
7.0 |
10.3 |
35.8 |
19.0 |
| 7030-06-04 |
3/8-18 |
1/4-19 |
10.3 |
7.0 |
35.8 |
19.0 |
| 7030-06-06 |
3/8-18 |
3/8-19 |
10.3 |
10.3 |
35.8 |
19.0 |
| 7030-08-08 |
1/2-14 |
1/2-14 |
13.5 |
13.5 |
46.9 |
22.0 |
| 7030-12-12 |
3/4-14 |
3/4-14 |
18.0 |
18.0 |
48.7 |
27.0 |
| 7030-16-16 |
1-11-1/2 |
1-11 |
23.8 |
23.8 |
58.5 |
36.0 |
| 7030-20-20 |
1-1/4-11-1/2 |
1-1/4-11 |
31.7 |
31.7 |
61.9 |
42.0 |
| 7030-24-24 |
1-1/2-11-1/2 |
1-1/2-11 |
38.0 |
38.0 |
65.3 |
50.0 |
| 7030-32-32 |
2-11-1/2 |
2-11 |
49.0 |
49.0 |
70.7 |
65.0 |
