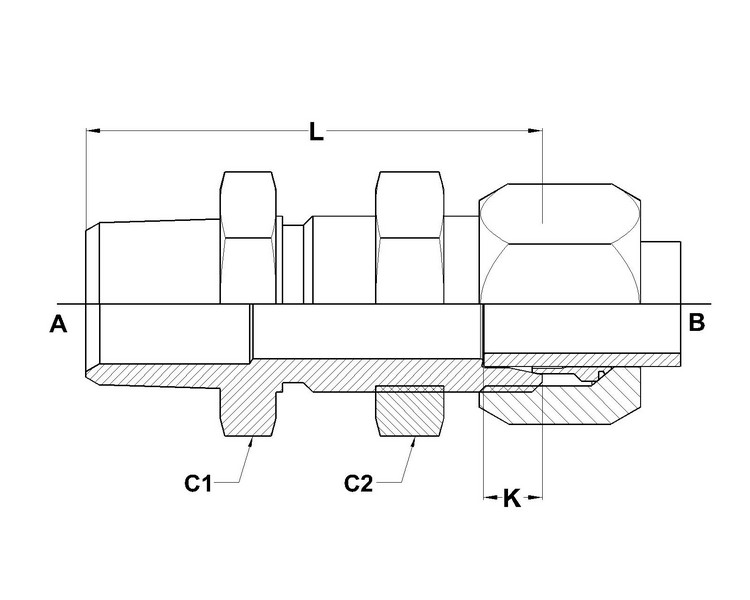

C2706 Series
| PART NO.SIZE |
TUBE O.D. |
A NPTF |
B THREAD |
A DRILL |
B DRILL |
L LGTH |
K DEPTH |
C1 HEX |
C2 HEX |
| C2706-02-04 |
1/4 |
1/8-27 |
7/16-20 |
0.188 |
0.203 |
1.77 |
0.234 |
0.688 |
0.688 |
| C2706-04-04 |
1/4 |
1/4-18 |
7/16-20 |
0.281 |
0.203 |
1.98 |
0.234 |
0.688 |
0.688 |
| C2706-04-06 |
3/8 |
1/4-18 |
9/16-18 |
0.281 |
0.281 |
2.03 |
0.250 |
0.812 |
0.812 |
| C2706-06-06 |
3/8 |
3/8-18 |
9/16-18 |
0.406 |
0.281 |
2.03 |
0.250 |
0.812 |
0.812 |
| C2706-08-06 |
3/8 |
1/2-14 |
9/16-18 |
0.531 |
0.281 |
2.28 |
0.250 |
0.875 |
0.875 |
| C2706-08-08 |
1/2 |
1/2-14 |
3/4-16 |
0.531 |
0.422 |
2.42 |
0.305 |
1.000 |
1.000 |
| C2706-12-12 |
3/4 |
3/4-14 |
1-1/16-12 |
0.719 |
0.656 |
2.74 |
0.350 |
1.375 |
1.375 |
| C2706-16-16 |
1 |
1-11-1/2 |
1-5/16-12 |
0.938 |
0.875 |
2.93 |
0.415 |
1.625 |
1.625 |
