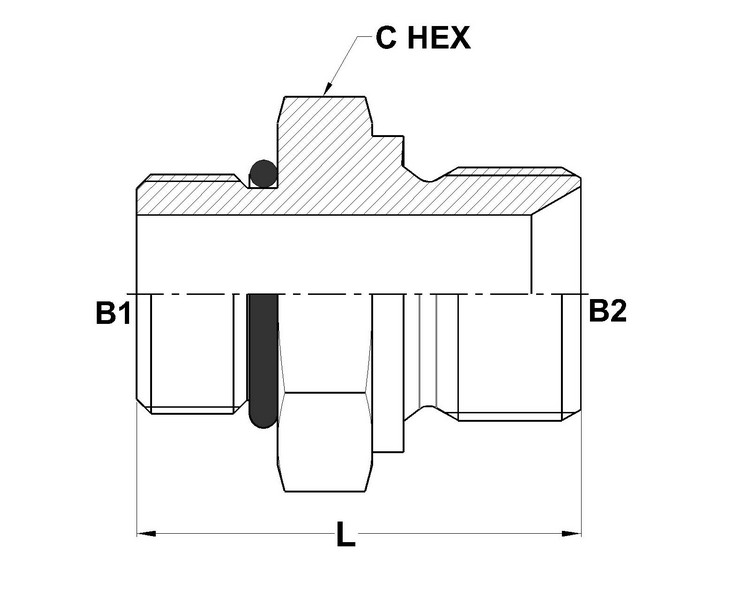

7062 Series
| PART NO.SIZE |
B1 SAE ORB |
B2 BSPP |
B1 DRILL |
B2 DRILL |
L LGTH |
C HEX |
| 7062-03-04 |
3/8-24 |
1/4-19 |
3.2 |
4.7 |
25.5 |
19.0 |
| 7062-04-04 |
7/16-20 |
1/4-19 |
4.4 |
4.7 |
27.1 |
19.0 |
| 7062-04-06 |
7/16-20 |
3/8-19 |
4.4 |
7.9 |
29.1 |
22.0 |
| 7062-05-04 |
1/2-20 |
1/4-19 |
6.0 |
4.7 |
27.1 |
19.0 |
| 7062-06-04 |
9/16-18 |
1/4-19 |
7.5 |
4.7 |
28.0 |
19.0 |
| 7062-06-06 |
9/16-18 |
3/8-19 |
7.5 |
7.9 |
30.0 |
22.0 |
| 7062-06-08 |
9/16-18 |
1/2-14 |
7.5 |
11.1 |
34.0 |
27.0 |
| 7062-08-06 |
3/4-16 |
3/8-19 |
9.9 |
7.9 |
32.8 |
22.0 |
| 7062-08-08 |
3/4-16 |
1/2-14 |
9.9 |
11.1 |
35.1 |
27.0 |
| 7062-08-10 |
3/4-16 |
5/8-14 |
9.9 |
14.3 |
39.1 |
30.0 |
| 7062-08-12 |
3/4-16 |
3/4-14 |
9.9 |
16.7 |
39.1 |
32.0 |
| 7062-10-06 |
7/8-14 |
3/8-19 |
12.3 |
7.9 |
35.7 |
27.0 |
| 7062-10-08 |
7/8-14 |
1/2-14 |
12.3 |
11.1 |
37.7 |
27.0 |
| 7062-10-12 |
7/8-14 |
3/4-14 |
12.3 |
16.7 |
40.7 |
32.0 |
| 7062-12-08 |
1-1/16-12 |
1/2-14 |
15.5 |
11.1 |
42.1 |
32.0 |
| 7062-12-12 |
1-1/16-12 |
3/4-14 |
15.5 |
16.7 |
44.1 |
32.0 |
| 7062-12-16 |
1-1/16-12 |
1-11 |
15.5 |
22.2 |
49.1 |
41.0 |
| 7062-16-12 |
1-5/16-12 |
3/4-14 |
21.4 |
16.7 |
44.9 |
41.0 |
| 7062-16-16 |
1-5/16-12 |
1-11 |
21.4 |
22.2 |
47.9 |
41.0 |
| 7062-20-16 |
1-5/8-12 |
1-11 |
27.4 |
22.2 |
49.7 |
50.0 |
| 7062-20-20 |
1-5/8-12 |
1-1/4-11 |
27.4 |
28.6 |
50.7 |
50.0 |
| 7062-24-20 |
1-7/8-12 |
1-1/4-11 |
33.3 |
28.6 |
52.5 |
55.0 |
| 7062-24-24 |
1-7/8-12 |
1-1/2-11 |
33.3 |
33.3 |
54.5 |
55.0 |
