6405-O Series
| PART NO. SIZE |
TUBE O.D. |
B SAE ORB |
A NPTF |
B DRILL |
L LGTH |

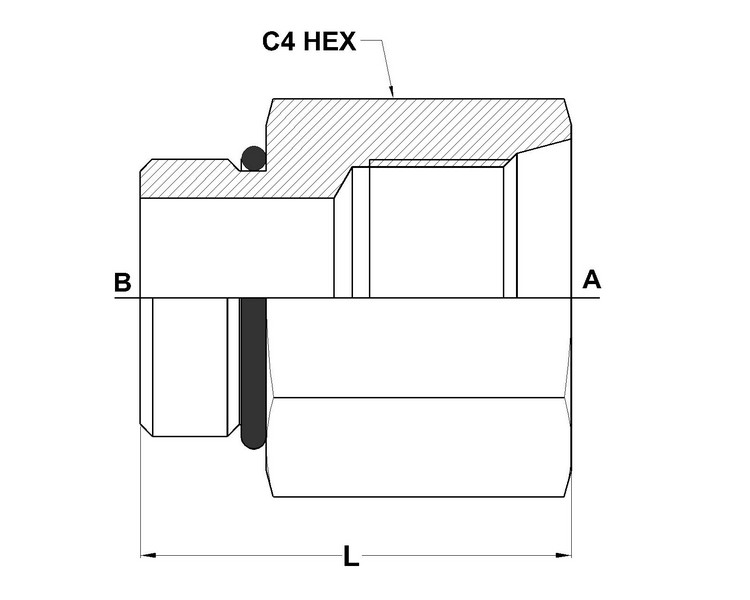

C4 HEX |
| 6405-02-02-O |
1/8 |
5/16-24 |
1/8-27 |
0.062 |
0.93 |
0.562 |
| 6405-02-04-O |
1/8 |
5/16-24 |
1/4-18 |
0.062 |
1.24 |
0.750 |
| 6405-03-04-O |
3/16 |
3/8-24 |
1/4-18 |
0.125 |
1.24 |
0.750 |
| 6405-04-02-O |
1/4 |
7/16-20 |
1/8-27 |
0.172 |
0.99 |
0.562 |
| 6405-04-04-O |
1/4 |
7/16-20 |
1/4-18 |
0.172 |
1.31 |
0.750 |
| 6405-04-06-O |
1/4 |
7/16-20 |
3/8-18 |
0.172 |
1.37 |
0.875 |
| 6405-05-02-O |
5/16 |
1/2-20 |
1/8-27 |
0.234 |
0.99 |
0.625 |
| 6405-05-04-O |
5/16 |
1/2-20 |
1/4-18 |
0.234 |
1.20 |
0.750 |
| 6405-05-06-O |
5/16 |
1/2-20 |
3/8-18 |
0.234 |
1.37 |
0.875 |
| 6405-06-02-O |
3/8 |
9/16-18 |
1/8-27 |
0.297 |
1.02 |
0.688 |
| 6405-06-04-O |
3/8 |
9/16-18 |
1/4-18 |
0.297 |
1.23 |
0.750 |
| 6405-06-06-O |
3/8 |
9/16-18 |
3/8-18 |
0.297 |
1.40 |
0.875 |
| 6405-06-08-O |
3/8 |
9/16-18 |
1/2-14 |
0.297 |
1.63 |
1.125 |
| 6405-08-02-O |
1/2 |
3/4-16 |
1/8-27 |
0.391 |
1.07 |
0.875 |
| 6405-08-04-O |
1/2 |
3/4-16 |
1/4-18 |
0.391 |
1.28 |
0.875 |
| 6405-08-06-O |
1/2 |
3/4-16 |
3/8-18 |
0.391 |
1.33 |
0.875 |
| 6405-08-08-O |
1/2 |
3/4-16 |
1/2-14 |
0.391 |
1.71 |
1.125 |
| 6405-08-12-O |
1/2 |
3/4-16 |
3/4-14 |
0.391 |
1.78 |
1.375 |
| 6405-10-04-O |
5/8 |
7/8-14 |
1/4-18 |
0.484 |
1.34 |
1.000 |
| 6405-10-06-O |
5/8 |
7/8-14 |
3/8-18 |
0.484 |
1.40 |
1.000 |
| 6405-10-08-O |
5/8 |
7/8-14 |
1/2-14 |
0.484 |
1.63 |
1.125 |
| 6405-10-12-O |
5/8 |
7/8-14 |
3/4-14 |
0.484 |
1.84 |
1.375 |
| 6405-12-04-O |
3/4 |
1-1/16-12 |
1/4-18 |
0.609 |
1.43 |
1.250 |
| 6405-12-06-O |
3/4 |
1-1/16-12 |
3/8-18 |
0.609 |
1.49 |
1.250 |
| 6405-12-08-O |
3/4 |
1-1/16-12 |
1/2-14 |
0.609 |
1.72 |
1.250 |
| 6405-12-12-O |
3/4 |
1-1/16-12 |
3/4-14 |
0.609 |
1.78 |
1.375 |
| 6405-12-16-O |
3/4 |
1-1/16-12 |
1-11-1/2 |
0.609 |
2.18 |
1.625 |
| 6405-14-08-O |
7/8 |
1-3/16-12 |
1/2-14 |
0.719 |
1.72 |
1.375 |
| 6405-14-12-O |
7/8 |
1-3/16-12 |
3/4-14 |
0.719 |
1.78 |
1.375 |
| 6405-14-16-O |
7/8 |
1-3/16-12 |
1-11-1/2 |
0.719 |
2.18 |
1.625 |
| 6405-16-04-O |
1 |
1-5/16-12 |
1/4-18 |
0.844 |
1.43 |
1.500 |
| 6405-16-06-O |
1 |
1-5/16-12 |
3/8-18 |
0.844 |
1.49 |
1.500 |
| 6405-16-08-O |
1 |
1-5/16-12 |
1/2-14 |
0.844 |
1.72 |
1.500 |
| 6405-16-12-O |
1 |
1-5/16-12 |
3/4-14 |
0.844 |
1.78 |
1.500 |
| 6405-16-16-O |
1 |
1-5/16-12 |
1-11-1/2 |
0.844 |
2.03 |
1.625 |
| 6405-16-20-O |
1 |
1-5/16-12 |
1-1/4-11-1/2 |
0.844 |
2.30 |
2.000 |
| 6405-16-24-O |
1 |
1-5/16-12 |
1-1/2-11-1/2 |
0.844 |
2.30 |
2.375 |
| 6405-20-08-O |
1-1/4 |
1-5/8-12 |
1/2-14 |
1.078 |
1.72 |
1.875 |
| 6405-20-12-O |
1-1/4 |
1-5/8-12 |
3/4-14 |
1.078 |
1.78 |
1.875 |
| 6405-20-16-O |
1-1/4 |
1-5/8-12 |
1-11-1/2 |
1.078 |
2.03 |
1.875 |
| 6405-20-20-O |
1-1/4 |
1-5/8-12 |
1-1/4-11-1/2 |
1.078 |
2.30 |
2.000 |
| 6405-20-24-O |
1-1/4 |
1-5/8-12 |
1-1/2-11-1/2 |
1.078 |
2.30 |
2.375 |
| 6405-20-32-O |
1-1/4 |
1-5/8-12 |
2-11-1/2 |
1.078 |
2.40 |
2.875 |
| 6405-24-04-O |
1-1/2 |
1-7/8-12 |
1/4-18 |
1.312 |
1.43 |
2.125 |
| 6405-24-12-O |
1-1/2 |
1-7/8-12 |
3/4-14 |
1.312 |
1.78 |
2.125 |
| 6405-24-16-O |
1-1/2 |
1-7/8-12 |
1-11-1/2 |
1.312 |
2.03 |
2.125 |
| 6405-24-20-O |
1-1/2 |
1-7/8-12 |
1-1/4-11-1/2 |
1.312 |
2.12 |
2.125 |
| 6405-24-24-O |
1-1/2 |
1-7/8-12 |
1-1/2-11-1/2 |
1.312 |
2.30 |
2.375 |
| 6405-32-16-O |
2 |
2-1/2-12 |
1-11-1/2 |
1.781 |
2.03 |
2.750 |
| 6405-32-20-O |
2 |
2-1/2-12 |
1-1/4-11-1/2 |
1.781 |
2.12 |
2.750 |
| 6405-32-24-O |
2 |
2-1/2-12 |
1-1/2-11-1/2 |
1.781 |
2.12 |
2.750 |
| 6405-32-32-O |
2 |
2-1/2-12 |
2-11-1/2 |
1.781 |
2.22 |
2.875 |
