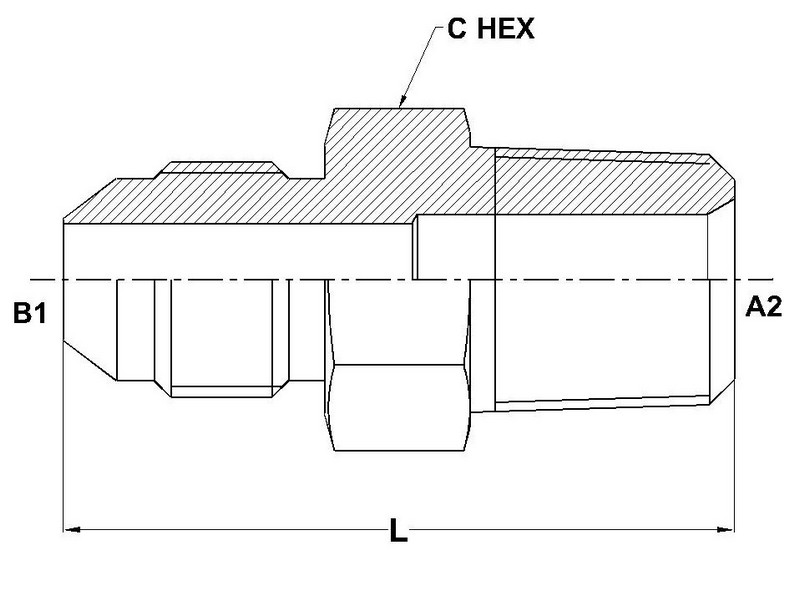

2404 Series SAE# 070102 / MS# 51500
| PART NO. SIZE |
TUBE O.D. |
B1 SAE 37 |
A2 NPTF |
B1 DRILL |
A2 DRILL |
L LGTH |
C HEX |
| 2404-02-02 |
1/8 |
5/16-24 |
1/8-27 |
0.062 |
0.188 |
1.11 |
0.438 |
| 2404-02-04 |
1/8 |
5/16-24 |
1/4-18 |
0.062 |
0.281 |
1.32 |
0.625 |
| 2404-03-02 |
3/16 |
3/8-24 |
1/8-27 |
0.125 |
0.188 |
1.14 |
0.438 |
| 2404-03-04 |
3/16 |
3/8-24 |
1/4-18 |
0.125 |
0.281 |
1.35 |
0.625 |
| 2404-04-01 |
1/4 |
7/16-20 |
1/16-27 |
0.172 |
0.117 |
1.22 |
0.500 |
| 2404-04-02 |
1/4 |
7/16-20 |
1/8-27 |
0.172 |
0.188 |
1.22 |
0.500 |
| 2404-04-04 |
1/4 |
7/16-20 |
1/4-18 |
0.172 |
0.281 |
1.42 |
0.625 |
| 2404-04-06 |
1/4 |
7/16-20 |
3/8-18 |
0.172 |
0.406 |
1.42 |
0.812 |
| 2404-04-08 |
1/4 |
7/16-20 |
1/2-14 |
0.172 |
0.531 |
1.68 |
0.875 |
| 2404-04-12 |
1/4 |
7/16-20 |
3/4-14 |
0.172 |
0.719 |
1.75 |
1.125 |
| 2404-05-02 |
5/16 |
1/2-20 |
1/8-27 |
0.234 |
0.188 |
1.22 |
0.562 |
| 2404-05-04 |
5/16 |
1/2-20 |
1/4-18 |
0.234 |
0.281 |
1.42 |
0.625 |
| 2404-05-06 |
5/16 |
1/2-20 |
3/8-18 |
0.234 |
0.406 |
1.42 |
0.812 |
| 2404-05-08 |
5/16 |
1/2-20 |
1/2-14 |
0.234 |
0.531 |
1.68 |
0.875 |
| 2404-06-02 |
3/8 |
9/16-18 |
1/8-27 |
0.297 |
0.188 |
1.24 |
0.625 |
| 2404-06-04 |
3/8 |
9/16-18 |
1/4-18 |
0.297 |
0.281 |
1.43 |
0.625 |
| 2404-06-06 |
3/8 |
9/16-18 |
3/8-18 |
0.297 |
0.406 |
1.43 |
0.812 |
| 2404-06-08 |
3/8 |
9/16-18 |
1/2-14 |
0.297 |
0.531 |
1.69 |
0.875 |
| 2404-06-12 |
3/8 |
9/16-18 |
3/4-14 |
0.297 |
0.719 |
1.75 |
1.125 |
| 2404-06-16 |
3/8 |
9/16-18 |
1-11-1/2 |
0.297 |
0.938 |
1.94 |
1.375 |
| 2404-08-02 |
1/2 |
3/4-16 |
1/8-27 |
0.391 |
0.188 |
1.34 |
0.812 |
| 2404-08-04 |
1/2 |
3/4-16 |
1/4-18 |
0.391 |
0.281 |
1.53 |
0.812 |
| 2404-08-06 |
1/2 |
3/4-16 |
3/8-18 |
0.391 |
0.406 |
1.53 |
0.812 |
| 2404-08-08 |
1/2 |
3/4-16 |
1/2-14 |
0.391 |
0.531 |
1.79 |
0.937 |
| 2404-08-12 |
1/2 |
3/4-16 |
3/4-14 |
0.391 |
0.719 |
1.85 |
1.125 |
| 2404-08-16 |
1/2 |
3/4-16 |
1-11-1/2 |
0.391 |
0.938 |
2.05 |
1.375 |
| 2404-10-04 |
5/8 |
7/8-14 |
1/4-18 |
0.484 |
0.281 |
1.70 |
0.937 |
| 2404-10-06 |
5/8 |
7/8-14 |
3/8-18 |
0.484 |
0.406 |
1.70 |
0.937 |
| 2404-10-08 |
5/8 |
7/8-14 |
1/2-14 |
0.484 |
0.531 |
1.89 |
0.937 |
| 2404-10-12 |
5/8 |
7/8-14 |
3/4-14 |
0.484 |
0.719 |
1.95 |
1.125 |
| 2404-10-16 |
5/8 |
7/8-14 |
1-11-1/2 |
0.484 |
0.938 |
2.15 |
1.375 |
| 2404-10-20 |
5/8 |
7/8-14 |
1-1/4-11-1/2 |
0.484 |
1.250 |
2.25 |
1.688 |
| 2404-12-04 |
3/4 |
1-1/16-12 |
1/4-18 |
0.609 |
0.281 |
1.87 |
1.125 |
| 2404-12-06 |
3/4 |
1-1/16-12 |
3/8-18 |
0.609 |
0.406 |
1.87 |
1.125 |
| 2404-12-08 |
3/4 |
1-1/16-12 |
1/2-14 |
0.609 |
0.531 |
2.06 |
1.125 |
| 2404-12-12 |
3/4 |
1-1/16-12 |
3/4-14 |
0.609 |
0.719 |
2.06 |
1.125 |
| 2404-12-16 |
3/4 |
1-1/16-12 |
1-11-1/2 |
0.609 |
0.938 |
2.25 |
1.375 |
| 2404-12-20 |
3/4 |
1-1/16-12 |
1-1/4-11-1/2 |
0.609 |
1.250 |
2.36 |
1.688 |
| 2404-12-24 |
3/4 |
1-1/16-12 |
1-1/2-11-1/2 |
0.609 |
1.500 |
2.46 |
2.000 |
| 2404-14-08 |
7/8 |
1-3/16-12 |
1/2-14 |
0.719 |
0.531 |
2.09 |
1.250 |
| 2404-14-12 |
7/8 |
1-3/16-12 |
3/4-14 |
0.719 |
0.719 |
2.09 |
1.250 |
| 2404-14-16 |
7/8 |
1-3/16-12 |
1-11-1/2 |
0.719 |
0.938 |
2.28 |
1.375 |
| 2404-16-06 |
1 |
1-5/16-12 |
3/8-18 |
0.844 |
0.406 |
1.92 |
1.375 |
| 2404-16-08 |
1 |
1-5/16-12 |
1/2-14 |
0.844 |
0.531 |
2.11 |
1.375 |
| 2404-16-12 |
1 |
1-5/16-12 |
3/4-14 |
0.844 |
0.719 |
2.11 |
1.375 |
| 2404-16-16 |
1 |
1-5/16-12 |
1-11-1/2 |
0.844 |
0.938 |
2.30 |
1.375 |
| 2404-16-20 |
1 |
1-5/16-12 |
1-1/4-11-1/2 |
0.844 |
1.250 |
2.40 |
1.688 |
| 2404-16-24 |
1 |
1-5/16-12 |
1-1/2-11-1/2 |
0.844 |
1.500 |
2.51 |
2.000 |
| 2404-16-32 |
1 |
1-5/16-12 |
2-11-1/2 |
0.844 |
1.938 |
2.69 |
2.625 |
| 2404-20-12 |
1-1/4 |
1-5/8-12 |
3/4-14 |
1.078 |
0.719 |
2.23 |
1.688 |
| 2404-20-16 |
1-1/4 |
1-5/8-12 |
1-11-1/2 |
1.078 |
0.938 |
2.42 |
1.688 |
| 2404-20-20 |
1-1/4 |
1-5/8-12 |
1-1/4-11-1/2 |
1.078 |
1.250 |
2.45 |
1.688 |
| 2404-20-24 |
1-1/4 |
1-5/8-12 |
1-1/2-11-1/2 |
1.078 |
1.500 |
2.55 |
2.000 |
| 2404-20-32 |
1-1/4 |
1-5/8-12 |
2-11-1/2 |
1.078 |
1.938 |
2.73 |
2.625 |
| 2404-20-40 |
1-1/4 |
1-5/8-12 |
2-1/2-8 |
1.078 |
2.318 |
3.20 |
3.250 |
| 2404-24-16 |
1-1/2 |
1-7/8-12 |
1-11-1/2 |
1.312 |
0.938 |
2.62 |
2.000 |
| 2404-24-20 |
1-1/2 |
1-7/8-12 |
1-1/4-11-1/2 |
1.312 |
1.250 |
2.65 |
2.000 |
| 2404-24-24 |
1-1/2 |
1-7/8-12 |
1-1/2-11-1/2 |
1.312 |
1.500 |
2.68 |
2.000 |
| 2404-24-32 |
1-1/2 |
1 7/8-12 |
2-11 1/2 |
1.312 |
1.938 |
2.86 |
2.625 |
| 2404-32-16 |
2 |
2-1/2-12 |
1-11 1/2 |
1.781 |
0.938 |
3.02 |
2.625 |
| 2404-32-20 |
2 |
2-1/2-12 |
1 1/4-11 1/2 |
1.781 |
1.250 |
3.05 |
2.625 |
| 2404-32-24 |
2 |
2-1/2-12 |
1 1/2-11 1/2 |
1.781 |
1.500 |
3.08 |
2.625 |
| 2404-32-32 |
2 |
2-1/2-12 |
2-11 1/2 |
1.781 |
1.938 |
3.11 |
2.625 |
| 2404-32-40 |
2 |
2-1/2-12 |
2-1/2-8 |
1.781 |
2.318 |
3.48 |
3.250 |
| 2404-32-48 |
2 |
2-1/2-12 |
3-8 |
1.781 |
2.818 |
3.74 |
3.750 |
| 2404-40-32 |
2-1/2 |
3-12 |
2-11-1/2 |
2.318 |
1.938 |
2.90 |
3.250 |
| 2404-40-40 |
2-1/2 |
3-12 |
2-1/2-8 |
2.318 |
2.318 |
3.37 |
3.250 |
| 2404-48-48 |
3 |
3-1/2-12 |
3-8 |
2.818 |
2.818 |
3.50 |
3.750 |
