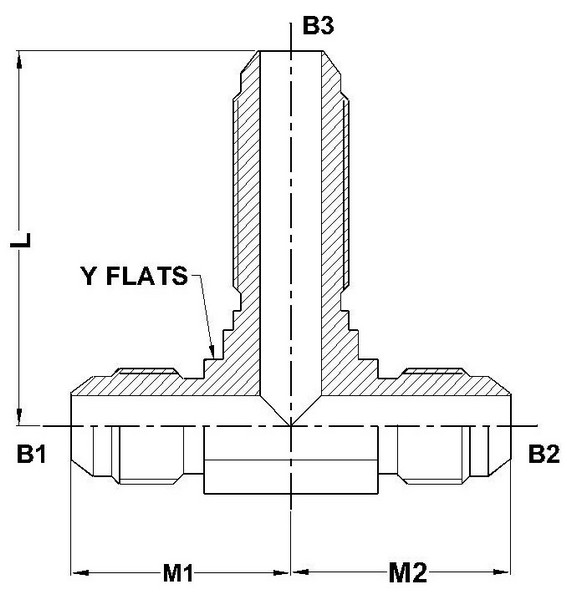

| PART NO .SIZE | TUBE O.D. | B1 SAE 37 | B2 SAE 37 | B3 SAE 37 | B1 DRILL | B2 DRILL | B3 DRILL | M1 LGTH | M2 LGTH | L LGTH | Y FLATS |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2703-03-03-03-FG | 3/16 | 3/8-24 | 3/8-24 | 3/8-24 | 0.125 | 0.125 | 0.125 | 0.94 | 0.94 | 1.50 | 0.438 |
| 2703-04-04-04-FG | 1/4 | 7/16-20 | 7/16-20 | 7/16-20 | 0.172 | 0.172 | 0.172 | 0.97 | 0.97 | 1.59 | 0.438 |
| 2703-04-04-06-FG | 1/4 | 7/16-20 | 7/16-20 | 9/16-18 | 0.172 | 0.172 | 0.297 | 1.08 | 1.08 | 1.81 | 0.562 |
| 2703-05-05-05-FG | 5/16 | 1/2-20 | 1/2-20 | 1/2-20 | 0.234 | 0.234 | 0.234 | 1.06 | 1.06 | 1.72 | 0.562 |
| 2703-06-06-06-FG | 3/8 | 9/16-18 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 0.297 | 1.09 | 1.09 | 1.81 | 0.562 |
| 2703-08-08-08-FG | 1/2 | 3/4-16 | 3/4-16 | 3/4-16 | 0.391 | 0.391 | 0.391 | 1.36 | 1.36 | 2.11 | 0.750 |
| 2703-10-10-10-FG | 5/8 | 7/8-14 | 7/8-14 | 7/8-14 | 0.484 | 0.484 | 0.484 | 1.56 | 1.56 | 2.39 | 0.875 |
| 2703-12-12-12-FG | 3/4 | 1-1/16-12 | 1-1/16-12 | 1-1/16-12 | 0.609 | 0.609 | 0.609 | 1.78 | 1.78 | 2.67 | 1.062 |
| 2703-12-12-16-FG | 3/4 | 1-1/16-12 | 1-1/16-12 | 1-5/16-12 | 0.609 | 0.609 | 0.844 | 1.89 | 1.89 | 2.80 | 1.312 |
| 2703-14-14-14-FG | 7/8 | 1-3/16-12 | 1-3/16-12 | 1-3/16-12 | 0.719 | 0.719 | 0.719 | 1.92 | 1.92 | 2.80 | 1.312 |
| 2703-16-16-16-FG | 1 | 1-5/16-12 | 1-5/16-12 | 1-5/16-12 | 0.844 | 0.844 | 0.844 | 1.94 | 1.94 | 2.80 | 1.312 |
| 2703-20-20-20-FG | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1-5/8-12 | 1.078 | 1.078 | 1.078 | 2.17 | 2.17 | 3.12 | 1.625 |
| 2703-24-24-24-FG | 1-1/2 | 1-7/8-12 | 1-7/8-12 | 1-7/8-12 | 1.312 | 1.312 | 1.312 | 2.34 | 2.34 | 3.42 | 1.875 |
