MJ-MJ-FP Tee

Tube Fittings & Adapters
2602 Series

MJ-MJ-FP Tee

Enquiry
Download PDF

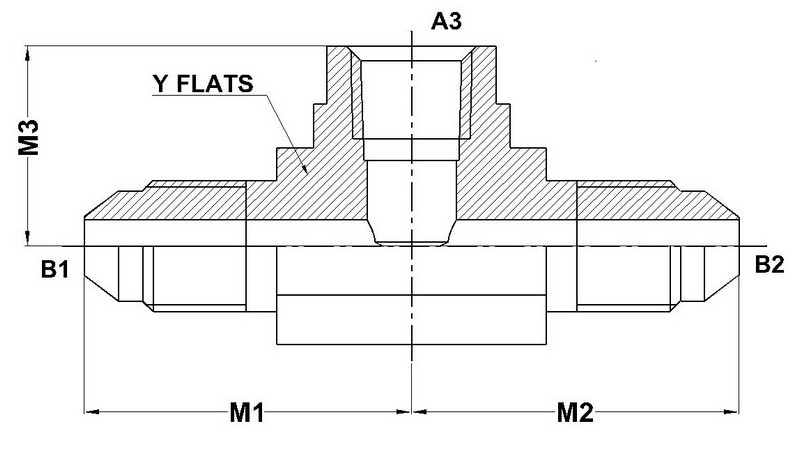

2602 Series SAE# 070427 / MS# 51513
PART NO.SIZE TUBE O.D. B1 SAE 37 B2 SAE 37 A3 NPFT B1 DRILL B2 DRILL M1 LGTH M2 LGTH N LGTH Y FLATS
2602-03-03-02-FG 3/16 3/8-24 3/8-24 1/8-27 0.125 0.125 1.03 1.03 0.66 0.562
2602-04-04-02-FG 1/4 7/16-20 7/16-20 1/8-27 0.172 0.172 1.08 1.08 0.66 0.562
2602-04-04-04-FG 1/4 7/16-20 7/16-20 1/4-18 0.172 0.172 1.22 1.22 0.88 0.750
2602-05-05-02-FG 5/16 1/2-20 1/2-20 1/8-27 0.234 0.234 1.08 1.08 0.66 0.562
2602-06-06-04-FG 3/8 9/16-18 9/16-18 1/4-18 0.297 0.297 1.23 1.23 0.88 0.750
2602-06-06-06-FG 3/8 9/16-18 9/16-18 3/8-18 0.297 0.297 1.31 1.31 1.02 0.875
2602-08-08-04-FG 1/2 3/4-16 3/4-16 1/4-18 0.391 0.391 1.42 1.42 1.02 0.875
2602-08-08-06-FG 1/2 3/4-16 3/4-16 3/8-18 0.391 0.391 1.42 1.42 1.02 0.875
2602-08-08-08-FG 1/2 3/4-16 3/4-16 1/2-14 0.391 0.391 1.52 1.52 1.23 1.062
2602-10-10-04-FG 5/8 7/8-14 7/8-14 1/4-18 0.484 0.484 1.64 1.64 1.04 1.062
2602-10-10-08-FG 5/8 7/8-14 7/8-14 1/2-14 0.484 0.484 1.64 1.64 1.23 1.062
2602-10-10-12-FG 5/8 7/8-14 7/8-14 3/4-14 0.484 0.484 1.77 1.77 1.36 1.312
2602-12-12-08-FG 3/4 1-1/16-12 1-1/16-12 1/2-14 0.609 0.609 1.89 1.89 1.36 1.312
2602-12-12-12-FG 3/4 1-1/16-12 1-1/16-12 3/4-14 0.609 0.609 1.89 1.89 1.36 1.312
2602-12-12-16-FG 3/4 1-1/16-12 1-1/16-12 1-11-1/2 0.609 0.609 2.12 2.12 1.62 1.625
2602-14-14-12-FG 7/8 1-3/16-12 1-3/16-12 3/4-14 0.719 0.719 1.86 1.86 1.42 1.312
2602-16-16-12-FG 1 1-5/16-12 1-5/16-12 3/4-14 0.844 0.844 2.17 2.17 1.43 1.625
2602-16-16-16-FG 1 1-5/16-12 1-5/16-12 1-11-1/2 0.844 0.844 2.17 2.17 1.62 1.625
2602-20-20-20-FG 1-1/4 1-5/8-12 1-5/8-12 1-1/4-11-1/2 1.078 1.078 2.33 2.33 1.70 1.875
2602-24-24-24-FG 1-1/2 1-7/8-12 1-7/8-12 1-1/2-11-1/2 1.312 1.312 2.89 2.89 2.08 2.562
2602-32-32-32-FG 2 2-1/2-12 2-1/2-12 2-11-1/2 1.781 1.781 3.30 3.30 2.39 2.812
