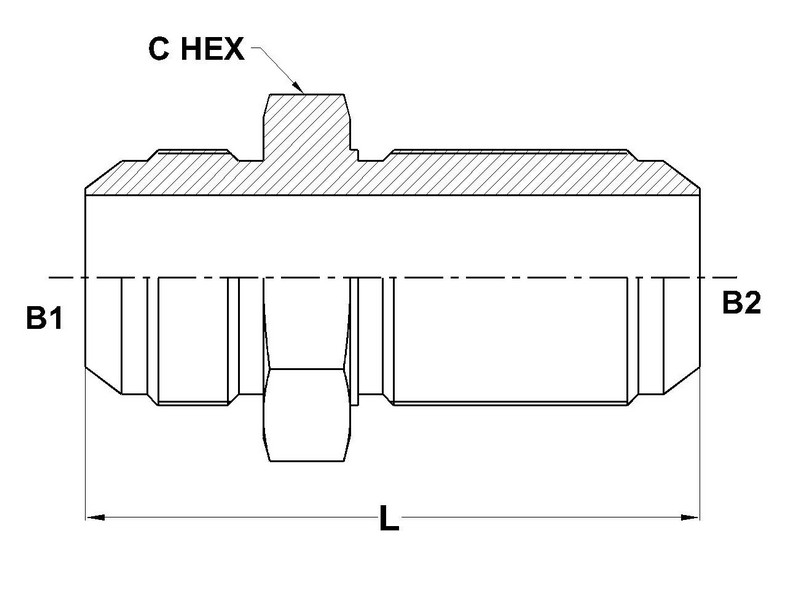

2700 Series SAE# 070601 / MS# 51520
| PART NO.SIZE |
TUBE O.D. |
B1 SAE 37 |
B2 SAE 37 |
B1 DRILL |
B2 DRILL |
L LGTH |
C HEX |
| 2700-02-02 |
1/8 |
5/16-24 |
5/16-24 |
0.062 |
0.062 |
1.87 |
0.562 |
| 2700-03-03 |
3/16 |
3/8-24 |
3/8-24 |
0.125 |
0.125 |
1.90 |
0.625 |
| 2700-04-04 |
1/4 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
2.07 |
0.688 |
| 2700-04-06 |
1/4 |
7/16-20 |
9/16-18 |
0.297 |
0.812 |
2.17 |
0.172 |
| 2700-05-05 |
5/16 |
1/2-20 |
1/2-20 |
0.234 |
0.234 |
2.07 |
0.750 |
| 2700-06-04 |
3/8 |
9/16-18 |
7/16-20 |
0.297 |
0.172 |
2.10 |
0.812 |
| 2700-06-06 |
3/8 |
9/16-18 |
9/16-18 |
0.297 |
0.297 |
2.18 |
0.812 |
| 2700-08-08 |
1/25 |
3/4-16 |
3/4-16 |
0.391 |
0.391 |
2.44 |
1.000 |
| 2700-10-10 |
5/8 |
7/8-14 |
7/8-14 |
0.484 |
0.484 |
2.74 |
1.125 |
| 2700-12-12 |
3/4 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.609 |
3.09 |
1.375 |
| 2700-14-14 |
7/8 |
1-3/16-12 |
1-3/16-12 |
0.719 |
0.719 |
3.12 |
1.500 |
| 2700-16-12 |
1 |
1-5/16-12 |
1-1/16-12 |
0.844 |
0.609 |
3.14 |
1.625 |
| 2700-16-16 |
1 |
1-5/16-12 |
1-5/16-12 |
0.844 |
0.844 |
3.14 |
1.625 |
| 2700-20-20 |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1.078 |
1.078 |
3.31 |
1.875 |
| 2700-24-24 |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
1.312 |
1.312 |
3.52 |
2.125 |
| 2700-32-32 |
2 |
2-1/2-12 |
2-1/2-12 |
1.781 |
1.781 |
4.20 |
2.750 |
