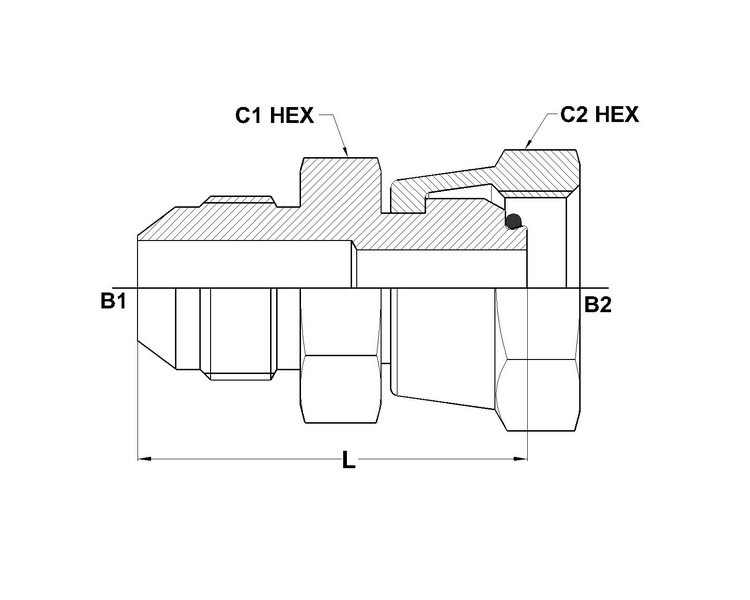

7007-L Series
| PART NO.SIZE |
B1 TUBE O.D |
B2 TUBE O.D |
B1 JIC |
B2 MS |
B1 DRILL |
B2 DRILL |
L LGTH |
C1 HEX |
C2 HEX |
| 7007-04-L06-12 |
1/4 |
06 |
7/16-20 |
M12 x 1.5 |
4.4 |
2.5 |
37.8 |
12.0 |
14.0 |
| 7007-05-L06-12 |
5/16 |
06 |
1/2-20 |
M12 x 1.5 |
6.0 |
2.5 |
37.8 |
14.0 |
14.0 |
| 7007-06-L08-14 |
3/8 |
08 |
9/16-18 |
M14 x 1.5 |
7.5 |
4.0 |
39.2 |
17.0 |
17.0 |
| 7007-06-L10-16 |
3/8 |
10 |
9/16-18 |
M16 x 1.5 |
7.5 |
6.0 |
41.2 |
17.0 |
19.0 |
| 7007-06-L12-18 |
3/8 |
12 |
9/16-18 |
M18 x 1.5 |
7.5 |
8.0 |
39.1 |
19.0 |
22.0 |
| 7007-06-L15-22 |
3/8 |
15 |
9/16-18 |
M22 x 1.5 |
7.5 |
10.0 |
39.6 |
22.0 |
27.0 |
| 7007-08-L10-16 |
1/2 |
10 |
3/4-16 |
M16 x 1.5 |
9.9 |
6.0 |
43.9 |
19.0 |
19.0 |
| 7007-08-L12-18 |
1/2 |
12 |
3/4-16 |
M18 x 1.5 |
9.9 |
8.0 |
43.9 |
19.0 |
22.0 |
| 7007-08-L15-22 |
1/2 |
15 |
3/4-16 |
M22 x 1.5 |
9.9 |
10.0 |
42.2 |
22.0 |
27.0 |
| 7007-08-L18-26 |
1/2 |
18 |
3/4-16 |
M26 x 1.5 |
9.9 |
13.0 |
43.2 |
24.0 |
32.0 |
| 7007-10-L12-18 |
5/8 |
12 |
7/8-14 |
M18 x 1.5 |
12.3 |
8.0 |
48.0 |
24.0 |
22.0 |
| 7007-10-L15-22 |
5/8 |
15 |
7/8-14 |
M22 x 1.5 |
12.3 |
10.0 |
50.0 |
24.0 |
27.0 |
| 7007-12-L18-26 |
3/4 |
18 |
1-1/16-12 |
M26 x 1.5 |
15.5 |
13.0 |
54.5 |
27.0 |
32.0 |
| 7007-12-L22-30 |
3/4 |
22 |
1-1/16-12 |
M30 x 2 |
15.5 |
17.0 |
56.5 |
27.0 |
36.0 |
| 7007-20-L35-45 |
1-1/4 |
35 |
1-5/8-12 |
M45 x 2 |
27.5 |
29.0 |
64.9 |
46.0 |
50.0 |
