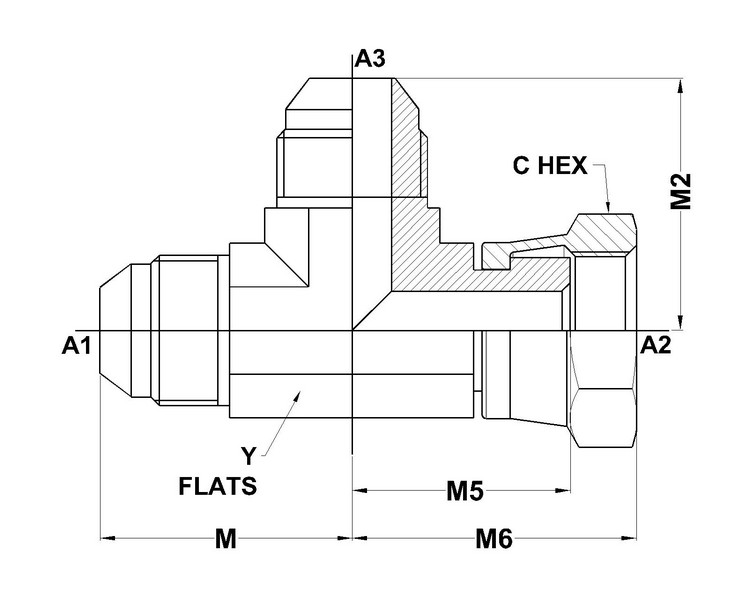

6602 Series SAE# 070432 / MS# 51523
| PART NO.SIZE |
A1 TUBE O.D. |
A2 TUBE O.D. |
A1 SAE 37 |
A2 SAE 37 |
A3 SAE 37 |
A1 DRILL |
A2 DRILL |
A3 DRILL |
M LGTH |
M5 LGTH |
M6 LGTH |
M2 LGTH |
C HEX |
Y HEX |
| 6602-03-03-03-FG |
3/16 |
3/16 |
3/8-24 |
3/8-24 |
3/8-24 |
0.125 |
0.125 |
0.125 |
0.83 |
0.67 |
1.00 |
0.83 |
0.500 |
0.438 |
| 6602-04-04-04-FG |
1/4 |
1/4 |
7/16-20 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
0.172 |
0.89 |
0.65 |
1.00 |
0.89 |
0.563 |
0.438 |
| 6602-04-06-06-FG |
1/4 |
3/8 |
7/16-20 |
9/16-18 |
9/16-18 |
0.172 |
0.297 |
0.297 |
1.05 |
0.87 |
1.25 |
1.06 |
0.688 |
0.562 |
| 6602-04-10-10-FG |
1/4 |
5/8 |
7/16-20 |
7/8-14 |
7/8-14 |
0.172 |
0.484 |
0.484 |
1.21 |
1.05 |
1.62 |
1.45 |
1.000 |
0.875 |
| 6602-04-12-12-FG |
1/4 |
3/4 |
7/16-20 |
1-1/16-12 |
1-1/16-12 |
0.172 |
0.609 |
0.609 |
1.30 |
1.18 |
1.75 |
1.66 |
1.250 |
1.062 |
| 6602-05-05-04-FG |
5/16 |
1/4 |
1/2-20 |
1/2-20 |
7/16-20 |
0.234 |
0.234 |
0.172 |
0.95 |
0.68 |
1.06 |
0.95 |
0.625 |
0.562 |
| 6602-05-05-05-FG |
5/16 |
5/16 |
1/2-20 |
1/2-20 |
1/2-20 |
0.234 |
0.234 |
0.234 |
0.95 |
0.68 |
1.06 |
0.95 |
0.625 |
0.562 |
| 6602-06-06-06-FG |
3/8 |
3/8 |
9/16-18 |
9/16-18 |
9/16-18 |
0.297 |
0.297 |
0.297 |
1.06 |
0.87 |
1.25 |
1.06 |
0.688 |
0.562 |
| 6602-06-06-04-FG |
3/8 |
1/4 |
9/16-18 |
9/16-18 |
7/16-20 |
0.297 |
0.297 |
0.172 |
1.06 |
0.87 |
1.25 |
1.05 |
0.688 |
0.562 |
| 6602-06-08-06-FG |
3/8 |
1/2 |
9/16-18 |
3/4-16 |
9/16-18 |
0.297 |
0.391 |
0.297 |
1.14 |
1.08 |
1.38 |
1.14 |
0.875 |
0.750 |
| 6602-06-08-08-FG |
3/8 |
1/2 |
9/16-18 |
3/4-16 |
3/4-16 |
0.297 |
0.391 |
0.391 |
1.14 |
1.08 |
1.38 |
1.25 |
0.875 |
0.750 |
| 6602-08-08-04-FG |
1/2 |
1/4 |
3/4-16 |
3/4-16 |
7/16-20 |
0.391 |
0.391 |
0.172 |
1.25 |
1.08 |
1.38 |
1.25 |
0.875 |
0.750 |
| 6602-08-08-05-FG |
1/2 |
5/16 |
3/4-16 |
3/4-16 |
1/2-20 |
0.391 |
0.391 |
0.234 |
1.25 |
1.08 |
1.38 |
1.12 |
0.875 |
0.750 |
| 6602-08-08-06-FG |
1/2 |
3/8 |
3/4-16 |
3/4-16 |
9/16-18 |
0.391 |
0.391 |
0.297 |
1.25 |
1.08 |
1.38 |
1.14 |
0.875 |
0.750 |
| 6602-08-08-08-FG |
1/2 |
1/2 |
3/4-16 |
3/4-16 |
3/4-16 |
0.391 |
0.391 |
0.391 |
1.25 |
1.08 |
1.38 |
1.25 |
0.875 |
0.750 |
| 6602-08-08-12-FG |
1/2 |
3/4 |
3/4-16 |
3/4-16 |
1-1/16-12 |
0.391 |
0.391 |
0.609 |
1.42 |
1.12 |
1.55 |
1.42 |
0.875 |
1.062 |
| 6602-08-12-12-FG |
1/2 |
3/4 |
3/4-16 |
1-1/16-12 |
1-1/16-12 |
0.391 |
0.609 |
0.609 |
1.42 |
1.18 |
1.75 |
1.66 |
1.250 |
1.062 |
| 6602-08-20-20-FG |
1/2 |
1-1/4 |
3/4-16 |
1-5/8-12 |
1-5/8-12 |
0.391 |
1.078 |
1.078 |
1.72 |
1.67 |
2.31 |
2.06 |
2.000 |
1.625 |
| 6602-10-10-10-FG |
5/8 |
5/8 |
7/8-14 |
7/8-14 |
7/8-14 |
0.484 |
0.484 |
0.484 |
1.45 |
1.12 |
1.62 |
1.45 |
1.000 |
0.875 |
| 6602-10-10-12-FG |
5/8 |
3/4 |
7/8-14 |
7/8-14 |
1-1/16-12 |
0.484 |
0.484 |
0.609 |
1.33 |
1.03 |
1.53 |
1.33 |
1.000 |
1.062 |
| 6602-12-12-04-FG |
3/4 |
1/4 |
1-1/16-12 |
1-1/16-12 |
7/16-20 |
0.609 |
0.609 |
0.172 |
1.66 |
1.18 |
1.75 |
1.66 |
1.250 |
1.062 |
| 6602-12-12-12-FG |
3/4 |
3/4 |
1-1/16-12 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.609 |
0.609 |
1.66 |
1.18 |
1.75 |
1.66 |
1.250 |
1.062 |
| 6602-14-14-14-FG |
7/8 |
7/8 |
1-3/16-12 |
1-3/16-12 |
1-3/16-12 |
0.719 |
0.719 |
0.719 |
1.80 |
1.20 |
1.78 |
1.80 |
1.375 |
1.312 |
| 6602-16-16-10-FG |
1 |
5/8 |
1-5/16-12 |
1-5/16-12 |
7/8-14 |
0.844 |
0.844 |
0.484 |
1.81 |
1.40 |
2.00 |
1.81 |
1.500 |
1.312 |
| 6602-16-16-12-FG |
1 |
3/4 |
1-5/16-12 |
1-5/16-12 |
1-1/16-12 |
0.844 |
0.844 |
0.609 |
1.81 |
1.40 |
2.00 |
1.81 |
1.500 |
1.312 |
| 6602-16-16-16-FG |
1 |
1 |
1-5/16-12 |
1-5/16-12 |
1-5/16-12 |
0.844 |
0.844 |
0.844 |
1.81 |
1.40 |
2.00 |
1.81 |
1.500 |
1.312 |
| 6602-16-20-20-FG |
1 |
1-1/4 |
1-5/16-12 |
1-5/8-12 |
1-5/8-12 |
0.844 |
1.078 |
1.078 |
2.01 |
1.67 |
2.31 |
2.06 |
2.000 |
1.625 |
| 6602-20-20-20-FG |
1-1/4 |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1-5/8-12 |
1.078 |
1.078 |
1.078 |
2.06 |
1.67 |
2.31 |
2.06 |
2.000 |
1.625 |
| 6602-24-24-24-FG |
1-1/2 |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
1-7/8-12 |
1.312 |
1.312 |
1.312 |
2.33 |
1.87 |
2.59 |
2.33 |
2.250 |
1.875 |
| 6602-32-32-32-FG |
2 |
2 |
2-1/2-12 |
2-1/2-12 |
2-1/2-12 |
1.781 |
1.781 |
1.781 |
3.06 |
2.43 |
3.38 |
3.06 |
2.875 |
2.500 |
