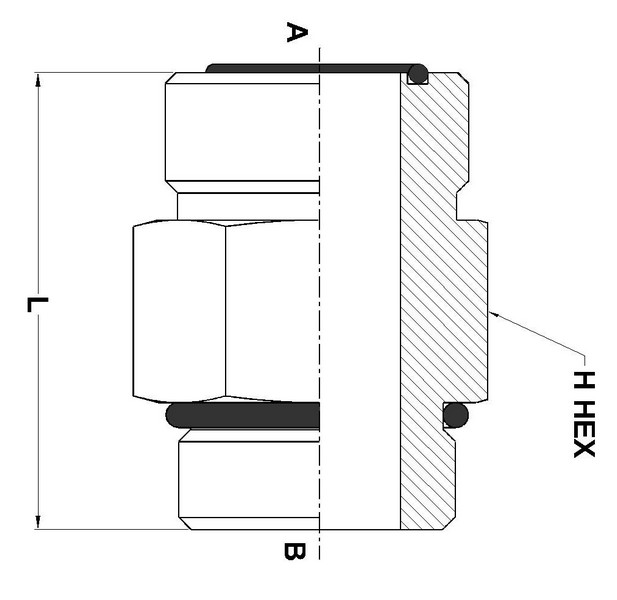

FS6400-O Series SAE# 520120
| PART NO.SIZE |
TUBE O.D. |
A THREAD |
B THREAD |
A DRILL |
B DRILL |
L LGTH |
H HEX |
| FS6400-04-03-O |
1/4 |
9/16-18 |
3/8-24 |
0.172 |
0.118 |
1.074 |
0.625 |
| FS6400-04-04-O |
1/4 |
9/16-18 |
7/16-20 |
0.172 |
0.172 |
1.133 |
0.625 |
| FS6400-04-05-O |
1/4 |
9/16-18 |
1/2-20 |
0.172 |
0.236 |
1.163 |
0.750 |
| FS6400-04-06-O |
1/4 |
9/16-18 |
9/16-18 |
0.172 |
0.264 |
1.202 |
0.750 |
| FS6400-04-08-O |
1/4 |
9/16-18 |
3/4-16 |
0.172 |
0.378 |
1.321 |
0.875 |
| FS6400-04-10-O |
1/4 |
9/16-18 |
7/8-14 |
0.172 |
0.484 |
1.480 |
1.062 |
| FS6400-04-12-O |
1/4 |
9/16-18 |
1-1/16-12 |
0.172 |
0.609 |
1.638 |
1.250 |
| FS6400-06-03-O |
3/8 |
11/16-16 |
3/8-24 |
0.264 |
0.118 |
1.284 |
0.750 |
| FS6400-06-04-O |
3/8 |
11/16-16 |
7/16-20 |
0.264 |
0.172 |
1.343 |
0.750 |
| FS6400-06-05-O |
3/8 |
11/16-16 |
1/2-20 |
0.264 |
0.236 |
1.213 |
0.750 |
| FS6400-06-06-O |
3/8 |
11/16-16 |
9/16-18 |
0.264 |
0.264 |
1.252 |
0.750 |
| FS6400-06-08-O |
3/8 |
11/16-16 |
3/4-16 |
0.264 |
0.378 |
1.381 |
0.875 |
| FS6400-06-10-O |
3/8 |
11/16-16 |
7/8-14 |
0.264 |
0.484 |
1.530 |
1.062 |
| FS6400-06-12-O |
3/8 |
11/16-16 |
1-1/16-12 |
0.264 |
0.609 |
1.688 |
1.250 |
| FS6400-06-16-O |
3/8 |
11/16-16 |
1-5/16-12 |
0.264 |
0.811 |
1.728 |
1.500 |
| FS6400-08-04-O |
1/2 |
13/16-16 |
7/16-20 |
0.378 |
0.172 |
1.433 |
0.875 |
| FS6400-08-06-O |
1/2 |
13/16-16 |
9/16-18 |
0.378 |
0.264 |
1.472 |
0.875 |
| FS6400-08-08-O |
1/2 |
13/16-16 |
3/4-16 |
0.378 |
0.378 |
1.441 |
0.875 |
| FS6400-08-10-O |
1/2 |
13/16-16 |
7/8-14 |
0.378 |
0.484 |
1.590 |
1.062 |
| FS6400-08-12-O |
1/2 |
13/16-16 |
1-1/16-12 |
0.378 |
0.609 |
1.748 |
1.250 |
| FS6400-08-16-O |
1/2 |
13/16-16 |
1-5/16-12 |
0.378 |
0.811 |
1.788 |
1.500 |
| FS6400-10-06-O |
5/8 |
1-14 |
9/16-18 |
0.484 |
0.264 |
1.642 |
1.062 |
| FS6400-10-08-O |
5/8 |
1-14 |
3/4-16 |
0.484 |
0.378 |
1.781 |
1.062 |
| FS6400-10-10-O |
5/8 |
1-14 |
7/8-14 |
0.484 |
0.484 |
1.700 |
1.062 |
| FS6400-10-12-O |
5/8 |
1-14 |
1-1/16-12 |
0.484 |
0.609 |
1.858 |
1.250 |
| FS6400-12-06-O |
3/4 |
1-3/16-12 |
9/16-18 |
0.609 |
0.264 |
1.772 |
1.250 |
| FS6400-12-08-O |
3/4 |
1-3/16-12 |
3/4-16 |
0.609 |
0.378 |
1.911 |
1.250 |
| FS6400-12-10-O |
3/4 |
1-3/16-12 |
7/8-14 |
0.609 |
0.484 |
1.990 |
1.250 |
| FS6400-12-12-O |
3/4 |
1-3/16-12 |
1-1/16-12 |
0.609 |
0.609 |
1.918 |
1.250 |
| FS6400-12-16-O |
3/4 |
1-3/16-12 |
1-5/16-12 |
0.609 |
0.811 |
1.958 |
1.500 |
| FS6400-12-20-O |
3/4 |
1-3/16-12 |
1-5/8-12 |
0.609 |
1.024 |
2.038 |
1.875 |
| FS6400-16-08-O |
1 |
1-7/16-12 |
3/4-16 |
0.811 |
0.378 |
1.961 |
1.500 |
| FS6400-16-10-O |
1 |
1-7/16-12 |
7/8-14 |
0.811 |
0.484 |
2.040 |
1.500 |
| FS6400-16-12-O |
1 |
1-7/16-12 |
1-1/16-12 |
0.811 |
0.609 |
2.138 |
1.500 |
| FS6400-16-16-O |
1 |
1-7/16-12 |
1-5/16-12 |
0.811 |
0.811 |
1.978 |
1.500 |
| FS6400-16-20-O |
1 |
1-7/16-12 |
1-5/8-12 |
0.811 |
1.024 |
2.058 |
1.875 |
| FS6400-20-16-O |
1-1/4 |
1-11/16-12 |
1-5/16-12 |
1.024 |
0.811 |
2.278 |
1.750 |
| FS6400-20-20-O |
1-1/4 |
1-11/16-12 |
1-5/8-12 |
1.024 |
1.024 |
2.058 |
1.875 |
| FS6400-20-24-O |
1-1/4 |
1-11/16-12 |
1-7/8-12 |
1.024 |
1.260 |
2.128 |
2.125 |
| FS6400-24-20-O |
1-1/2 |
2-12 |
1-5/8-12 |
1.260 |
1.024 |
2.348 |
2.125 |
| FS6400-24-24-O |
1-1/2 |
2-12 |
1-7/8-12 |
1.260 |
1.260 |
2.128 |
2.125 |
| FS6400-32-32-O |
2 |
2-1/2-12 |
2-1/2-12 |
1.772 |
1.578 |
2.313 |
2.750 |
