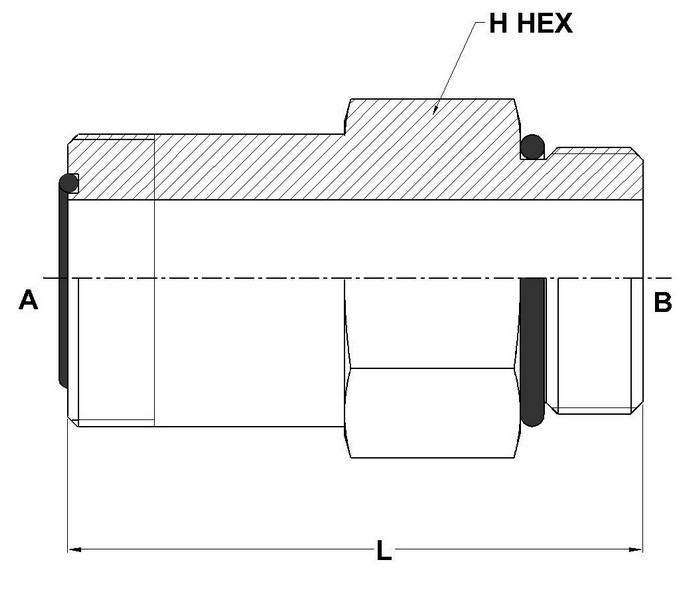

FS6400-L-O Series SAE# 520122
| PART NO.SIZE |
TUBE O.D. |
A THREAD |
B THREAD |
A DRILL |
B DRILL |
L LGTH |
H HEX |
| FS6400-L-04-04-O |
1/4 |
9/16-18 |
7/16-20 |
0.172 |
0.172 |
2.073 |
0.625 |
| FS6400-L-06-06-O |
3/8 |
11/16-16 |
9/16-18 |
0.264 |
0.264 |
2.272 |
0.750 |
| FS6400-L-06-08-O |
3/8 |
11/16-16 |
3/4-16 |
0.264 |
0.378 |
2.611 |
0.875 |
| FS6400-L-08-08-O |
1/2 |
13/16-16 |
3/4-16 |
0.378 |
0.378 |
2.671 |
0.875 |
| FS6400-L-10-10-O |
5/8 |
1-14 |
7/8-14 |
0.484 |
0.484 |
3.130 |
1.062 |
| FS6400-L-12-10-O |
3/4 |
1-3/16-12 |
7/8-14 |
0.609 |
0.484 |
3.660 |
1.250 |
| FS6400-L-12-12-O |
3/4 |
1-3/16-12 |
1-1/16-12 |
0.609 |
0.609 |
3.758 |
1.250 |
| FS6400-L-16-12-O |
1 |
1-7/16-12 |
1-1/16-12 |
0.811 |
0.609 |
4.138 |
1.500 |
| FS6400-L-16-16-O |
1 |
1-7/16-12 |
1-5/16-12 |
0.811 |
0.811 |
4.138 |
1.500 |
| FS6400-L-20-20-O |
1-1/4 |
1-11/16-12 |
1-5/8-12 |
1.024 |
1.024 |
4.758 |
1.875 |
| FS6400-L-24-24-O |
1-1/2 |
2-12 |
1-7/8-12 |
1.260 |
1.260 |
5.258 |
2.125 |
