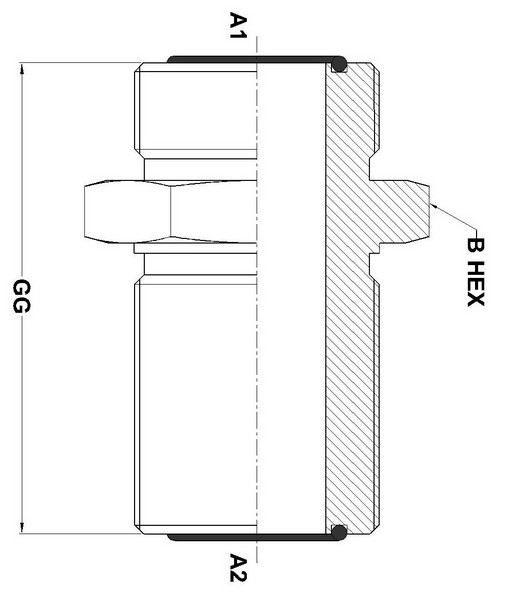

| PART NO.SIZE | TUBE O.D. | A1 THREAD | A2 THREAD | A1 DRILL | A2 DRILL | GG LGTH | B HEX |
|---|---|---|---|---|---|---|---|
| FS2700-04-04 | 1/4 | 9/16-18 | 9/16-18 | 0.172 | 0.172 | 1.90 | 0.812 |
| FS2700-06-06 | 3/8 | 11/16-16 | 11/16-16 | 0.264 | 0.264 | 2.09 | 1.000 |
| FS2700-06-08 | 3/8 1/2 | 11/16-16 | 13/16-16 | 0.264 | 0.378 | 2.24 | 1.125 |
| FS2700-08-08 | 1/2 | 13/16-16 | 13/16-16 | 0.378 | 0.378 | 2.30 | 1.125 |
| FS2700-10-10 | 5/8 | 1-14 | 1-14 | 0.484 | 0.484 | 2.62 | 1.312 |
| FS2700-12-12 | 3/4 | 1-3/16-12 | 1-3/16-12 | 0.609 | 0.609 | 2.72 | 1.500 |
| FS2700-16-16 | 1 | 1-7/16-12 | 1-7/16-12 | 0.811 | 0.811 | 2.76 | 1.750 |
| FS2700-20-20 | 1-1/4 | 1-11/16-12 | 1-11/16-12 | 1.024 | 1.024 | 2.76 | 2.000 |
| FS2700-24-24 | 1-1/2 | 2-12 | 2-12 | 1.260 | 1.260 | 2.76 | 2.375 |
| *Locknut style available. Use part number FS2700-LN-(size) |
