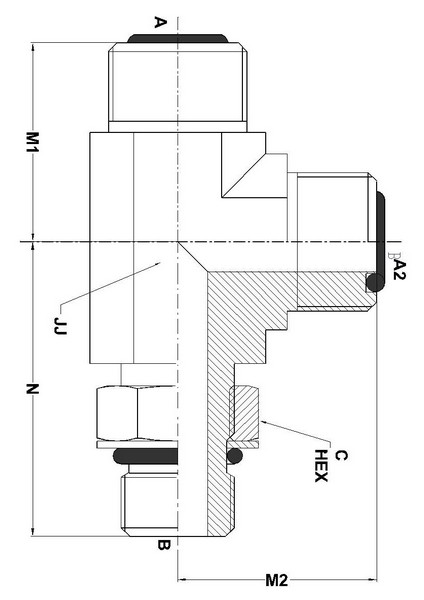

FS6804 Series SAE# 520428
| PART NO.SIZE |
TUBE O.D. |
A1 THREAD |
B THREAD |
A2 THREAD |
A1 DRILL |
B DRILL |
A2 DRILL |
M1 LGTH |
N LGTH |
M2 LGTH |
C HEX |
JJ FLATS |
| FS6804-04-04-04-NWO-FG |
1/4 |
9/16-18 |
7/16-20 |
9/16-18 |
0.172 |
0.172 |
0.172 |
0.85 |
1.29 |
0.85 |
0.625 |
0.562 |
| FS6804-04-06-04-NWO-FG |
1/4 |
9/16-18 |
9/16-18 |
9/16-18 |
0.172 |
0.264 |
0.172 |
0.92 |
1.45 |
0.92 |
0.750 |
0.750 |
| FS6804-06-04-06-NWO-FG |
3/8 |
11/16-16 |
7/16-20 |
11/16-16 |
0.264 |
0.172 |
0.264 |
0.98 |
1.37 |
0.98 |
0.625 |
0.750 |
| FS6804-06-06-06-NWO-FG |
3/8 |
11/16-16 |
9/16-18 |
11/16-16 |
0.264 |
0.264 |
0.264 |
0.98 |
1.45 |
0.98 |
0.750 |
0.750 |
| FS6804-06-08-06-NWO-FG |
3/8 |
11/16-16 |
3/4-16 |
11/16-16 |
0.264 |
0.378 |
0.264 |
1.04 |
1.60 |
1.04 |
0.938 |
0.750 |
| FS6804-08-06-08-NWO-FG |
1/2 |
13/16-16 |
9/16-18 |
13/16-16 |
0.378 |
0.295 |
0.378 |
1.10 |
1.45 |
1.10 |
0.750 |
0.750 |
| FS6804-08-08-04-NWO-FG |
1/2 |
13/16-16 |
3/4-16 |
9/16-18 |
0.378 |
0.378 |
0.172 |
1.10 |
1.60 |
0.97 |
0.938 |
0.750 |
| FS6804-08-08-08-NWO-FG |
1/2 |
13/16-16 |
3/4-16 |
13/16-16 |
0.378 |
0.378 |
0.378 |
1.10 |
1.60 |
1.10 |
0.938 |
0.750 |
| FS6804-08-10-08-NWO-FG |
1/2 |
13/16-16 |
7/8-14 |
13/16-16 |
0.378 |
0.484 |
0.378 |
1.21 |
1.97 |
1.21 |
1.062 |
1.062 |
| FS6804-08-12-04-NWO-FG |
1/2 |
13/16-16 |
1-1/16-12 |
9/16-18 |
0.378 |
0.609 |
0.172 |
1.32 |
2.17 |
1.19 |
1.375 |
1.188 |
| FS6804-08-12-08-NWO-FG |
1/2 |
13/16-16 |
1-1/16-12 |
13/16-16 |
0.378 |
0.609 |
0.378 |
1.32 |
2.17 |
1.32 |
1.375 |
1.188 |
| FS6804-10-10-06-NWO-FG |
5/8 |
1-14 |
7/8-14 |
11/16-16 |
0.484 |
0.484 |
0.264 |
1.31 |
1.97 |
1.15 |
1.062 |
1.062 |
| FS6804-10-10-10-NWO-FG |
5/8 |
1-14 |
7/8-14 |
1-14 |
0.484 |
0.484 |
0.484 |
1.31 |
1.97 |
1.31 |
1.062 |
1.062 |
| FS6804-10-12-10-NWO-FG |
5/8 |
1-14 |
1-1/16-12 |
1-14 |
0.484 |
0.609 |
0.484 |
1.41 |
2.17 |
1.41 |
1.375 |
1.188 |
| FS6804-12-08-08-NWO-FG |
3/4 |
1-3/16-12 |
3/4-16 |
13/16-16 |
0.609 |
0.378 |
0.378 |
1.47 |
1.84 |
1.32 |
0.938 |
1.188 |
| FS6804-12-12-08-NWO-FG |
3/4 |
1-3/16-12 |
1-1/16-12 |
13/16-16 |
0.609 |
0.609 |
0.378 |
1.47 |
2.17 |
1.32 |
1.375 |
1.188 |
| FS6804-12-12-12-NWO-FG |
3/4 |
1-3/16-12 |
1-1/16-12 |
1-3/16-12 |
0.609 |
0.609 |
0.609 |
1.47 |
2.17 |
1.47 |
1.375 |
1.188 |
| FS6804-12-12-16-NWO-FG |
3/4 |
1-3/16-12 |
1-1/16-12 |
1-7/16-12 |
0.609 |
0.609 |
0.811 |
1.62 |
2.32 |
1.64 |
1.375 |
1.438 |
| FS6804-16-12-12-NWO-FG |
1 |
1-7/16-12 |
1-1/16-12 |
1-3/16-12 |
0.811 |
0.609 |
0.609 |
1.64 |
2.32 |
1.62 |
1.375 |
1.438 |
| FS6804-16-16-16-NWO-FG |
1 |
1-7/16-12 |
1-5/16-12 |
1-7/16-12 |
0.811 |
0.811 |
0.811 |
1.64 |
2.35 |
1.64 |
1.625 |
1.438 |
| FS6804-16-24-16-NWO-FG |
1 |
1-7/16-12 |
1-7/8-12 |
1-7/16-12 |
0.811 |
1.260 |
0.811 |
1.92 |
2.59 |
1.92 |
2.125 |
1.875 |
| FS6804-20-20-20-NWO-FG |
1-1/4 |
1-11/16-12 |
1-5/8-12 |
1-11/16-12 |
1.024 |
1.024 |
1.024 |
1.76 |
2.45 |
1.76 |
1.875 |
1.625 |
| FS6804-24-24-24-NWO-FG |
1-1/2 |
2-12 |
1-7/8-12 |
2-12 |
1.260 |
1.260 |
1.260 |
1.92 |
2.59 |
1.92 |
2.125 |
1.875 |
