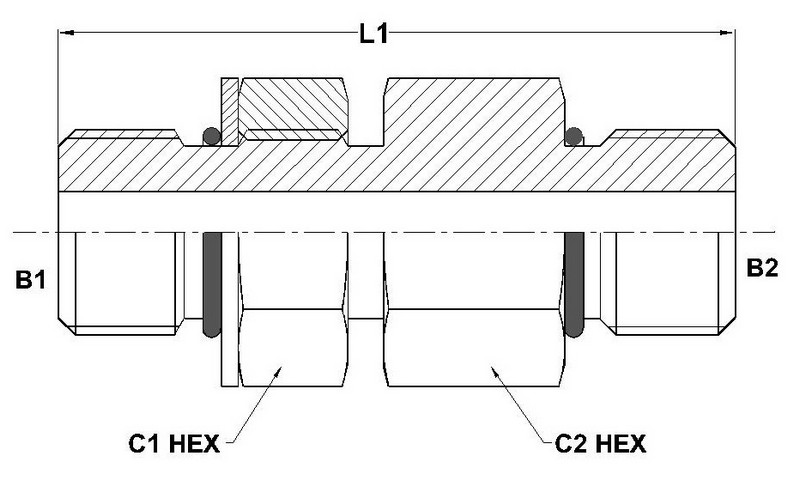

3474-NWO Series
| PART NO.SIZE |
B1 TUBE O.D. |
B2 TUBE O.D. |
B1 AORB |
B2 ORB |
B1 DRILL |
B2 DRILL |
L1 LGTH |
C1 HEX |
C2 HEX |
| 3474-04-04-NWO |
1/4 |
1/4 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
1.47 |
0.562 |
0.562 |
| 3474-06-04-NWO |
3/8 |
3/8 |
9/16-18 |
7/16-20 |
0.297 |
0.172 |
1.38 |
0.688 |
0.688 |
| 3474-06-06-NWO |
3/8 |
3/8 |
9/16-18 |
9/16-18 |
0.297 |
0.297 |
1.56 |
0.688 |
0.688 |
| 3474-08-06-NWO |
1/2 |
1/2 |
3/4-16 |
9/16-18 |
0.391 |
0.297 |
1.72 |
0.875 |
0.875 |
| 3474-08-08-NWO |
1/2 |
1/2 |
3/4-16 |
3/4-16 |
0.391 |
0.391 |
1.76 |
0.875 |
0.875 |
| 3474-08-12-NWO |
3/4 |
3/4 |
3/4-16 |
1-1/16-12 |
0.391 |
0.609 |
1.97 |
0.875 |
1.250 |
| 3474-10-08-NWO |
5/8 |
5/8 |
7/8-14 |
3/4-16 |
0.484 |
0.391 |
1.75 |
1.000 |
1.000 |
| 3474-10-10-NWO |
5/8 |
5/8 |
7/8-14 |
7/8-14 |
0.484 |
0.484 |
2.04 |
1.000 |
1.000 |
| 3474-12-08-NWO |
3/4 |
3/4 |
1-1/16-12 |
3/4-16 |
0.609 |
0.391 |
2.10 |
1.250 |
1.125 |
| 3474-12-10-NWO |
3/4 |
3/4 |
1-1/16-12 |
7/8-14 |
0.609 |
0.484 |
2.13 |
1.250 |
1.250 |
| 3474-12-12-NWO |
3/4 |
3/4 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.609 |
2.33 |
1.250 |
1.250 |
| 3474-16-12-NWO |
1 |
3/4 |
1-5/16-12 |
1-1/16-12 |
0.844 |
0.609 |
2.36 |
1.500 |
1.375 |
| 3474-16-16-NWO |
1 |
1 |
1-5/16-12 |
1-5/16-12 |
0.844 |
0.844 |
2.36 |
1.500 |
1.500 |
| 3474-20-20-NWO |
1-1/4 |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1.078 |
1.078 |
2.31 |
1.875 |
1.875 |
| 3474-24-24-NWO |
1-1/2 |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
1.312 |
1.312 |
2.42 |
2.125 |
2.125 |
| 3474-32-32-NWO |
2 |
2 |
2-1/2-12 |
2-1/2-12 |
1.781 |
1.781 |
2.59 |
2.750 |
2.750 |
