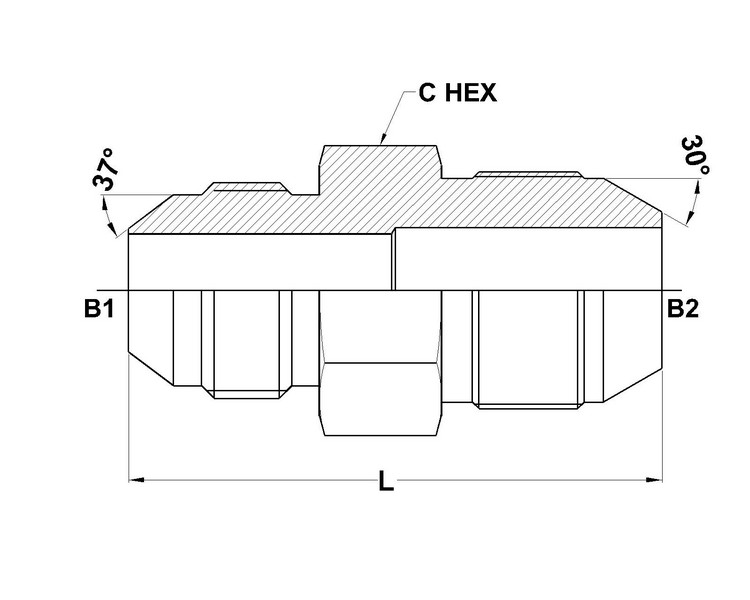

| PART NO.SIZE | TUBE O.D | B1 JIC | B2 MK METRIC | B1 DRILL | B2 DRILL | L LGTH | C HEX |
|---|---|---|---|---|---|---|---|
| 7009-04-14 | 1/4 | 7/16-20 | M14 x 1.5 | 4.4 | 5.0 | 37.4 | 17.0 |
| 7009-06-16 | 3/8 | 9/16-18 | M16 x 1.6 | 19.0 | |||
| 7009-06-18 | 3/8 | 9/16-18 | M18 x 1.5 | 7.5 | 8.0 | 39.2 | 22.0 |
| 7009-08-22 | 1/2 | 3/4-16 | M22 x 1.5 | 9.9 | 10.0 | 45.4 | 24.0 |
| 7009-10-24 | 5/8 | 7/8-14 | M24 x 1.5 | 12.3 | 13.0 | 51.3 | 27.0 |
| 7009-12-30 | 3/4 | 1-1/16-12 | M30 x 1.5 | 15.5 | 14.0 | 58.5 | 32.0 |
| 7009-16-33 | 1 | 1-5/16-12 | M33 x 1.5 | 21.5 | 22.0 | 63.7 | 38.0 |
