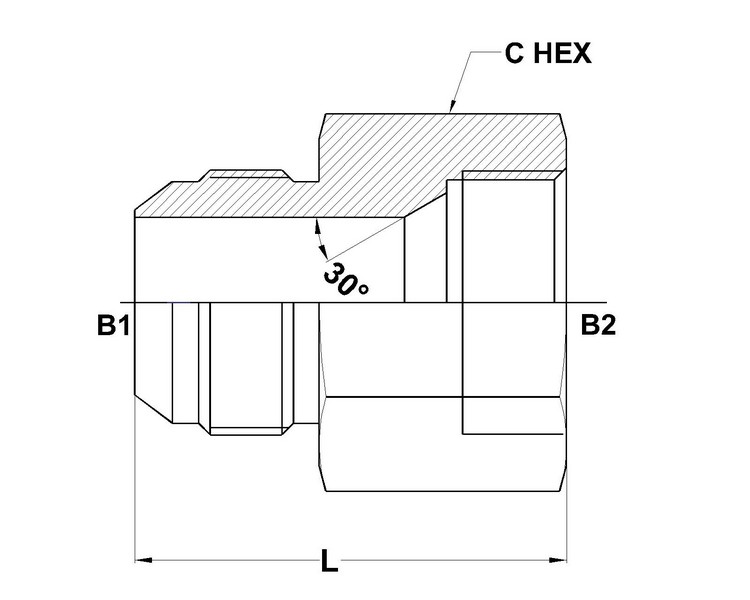

| PART NO.SIZE | TUBE O.D | B1 JIC | B2 FK METRIC | B1 DRILL | L LGTH | C1 HEX |
|---|---|---|---|---|---|---|
| 7009-F-04-14 | 1/4 | 7/16-20 | M14 x 1.5 | 4.4 | 35.4 | 19.0 |
| 7009-F-06-18 | 3/8 | 9/16-18 | M18 x 1.5 | 7.5 | 36.6 | 24.0 |
| 7009-F-08-22 | 1/2 | 3/4-16 | M22 x 1.5 | 9.9 | 42.2 | 27.0 |
| 7009-F-10-24 | 5/8 | 7/8-14 | M24 x 1.5 | 12.3 | 41.8 | 32.0 |
| 7009-F-12-30 | 3/4 | 1-1/16-12 | M30 x 1.5 | 15.5 | 49.4 | 36.0 |
| 7009-F-16-33 | 1 | 1-5/16-12 | M33 x 1.5 | 21.5 | 55.1 | 41.0 |
