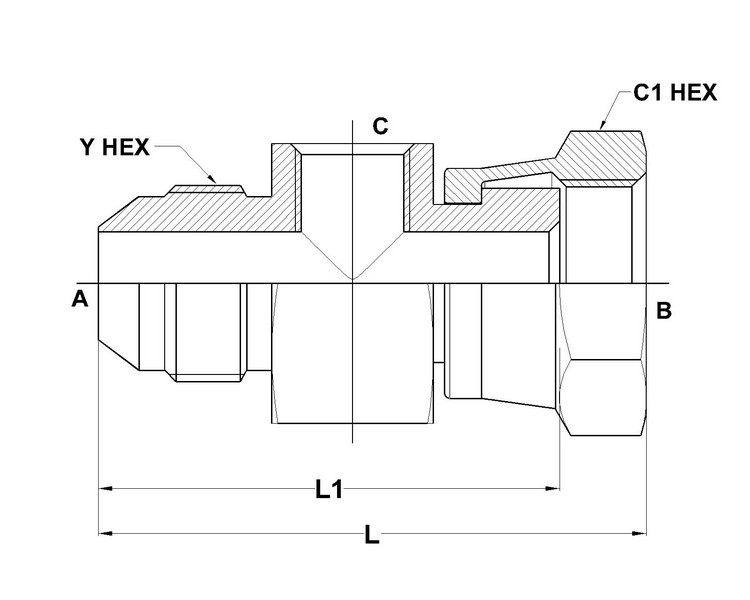

6564 Series
| PART NO. SIZE |
TUBE O.D. |
A JIC |
B FJS |
C FORB |
A DRILL |
B DRILL |
L1 LGTH |
L LGTH |
C1 HEX |
Y HEX |
| 6564-04-04-04 |
1/4 |
7/16-20 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
1.48 |
1.83 |
0.563 |
1.062 |
| 6564-06-06-04 |
3/8 |
9/16-18 |
9/16-18 |
7/16-20 |
0.297 |
0.297 |
1.57 |
1.95 |
0.688 |
1.062 |
| 6564-08-08-04 |
1/2 |
3/4-16 |
3/4-16 |
7/16-20 |
0.391 |
0.391 |
1.75 |
2.18 |
0.875 |
1.062 |
| 6564-10-10-04 |
5/8 |
7/8-14 |
7/8-14 |
7/16-20 |
0.484 |
0.484 |
1.90 |
2.40 |
1.000 |
1.125 |
| 6564-12-12-04 |
3/4 |
1-1/16-12 |
1-1/16-12 |
7/16-20 |
0.609 |
0.609 |
2.02 |
2.59 |
1.250 |
1.250 |
| 6564-16-16-04 |
1 |
1-5/16-12 |
1-5/16-12 |
7/16-20 |
0.844 |
0.844 |
2.25 |
2.85 |
1.500 |
1.500 |
| 6564-20-20-04 |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
7/16-20 |
1.078 |
1.078 |
2.43 |
3.07 |
2.000 |
1.750 |
| 6564-24-24-04 |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
7/16-20 |
1.312 |
1.312 |
2.50 |
3.22 |
2.250 |
2.125 |
