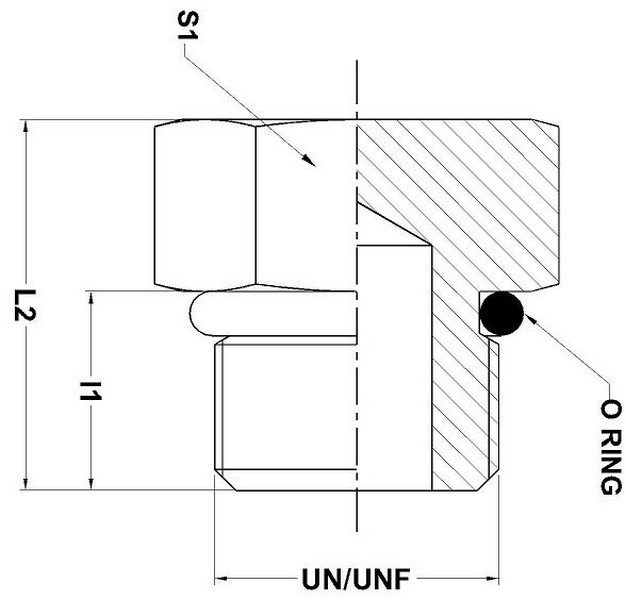

HP As per SAE J514
| Part No. |
UNF/UN |
l 1 |
L2 |
S1 |
O' Ring |
| HP 02 |
5/16 - 24 |
7.54 |
15.2 |
12 |
6.07 X 1.63 |
| HP 03 |
3/8 - 24 |
7.54 |
15.2 |
12 |
7.65 X 1.63 |
| HP 04 |
7/16 - 20 |
9.14 |
17 |
14 |
8.92 X 1.83 |
| HP 05 |
1/2 - 20 |
9.14 |
17 |
17 |
10.52 X 1.83 |
| HP 06 |
9/16 - 18 |
9.93 |
18.5 |
17 |
11.89 X 1.98 |
| HP 08 |
3/4 - 16 |
11.13 |
20.3 |
22 |
16.36 X 2.21 |
| HP 10 |
7/8 - 14 |
12.7 |
23.6 |
27 |
19.18 X 2.46 |
| HP 12 |
1.1/16 - 12 |
15.09 |
27.7 |
32 |
23.47 X 2.95 |
| HP 14 |
1.3/16 - 12 |
15.09 |
27.7 |
36 |
26.59 X 2.95 |
| HP 16 |
1.5/16 - 12 |
15.09 |
28.4 |
41 |
29.74 X 2.95 |
| HP 20 |
1.5/8 - 12 |
15.09 |
30.5 |
46 |
37.47 X 3.0 |
| HP 22 |
1.7/8 - 12 |
15.09 |
32.3 |
55 |
43.69 X 3.0 |
| HP 24 |
2.1/2 - 12 |
15.09 |
36.3 |
70 |
59.36 X 3.0 |
