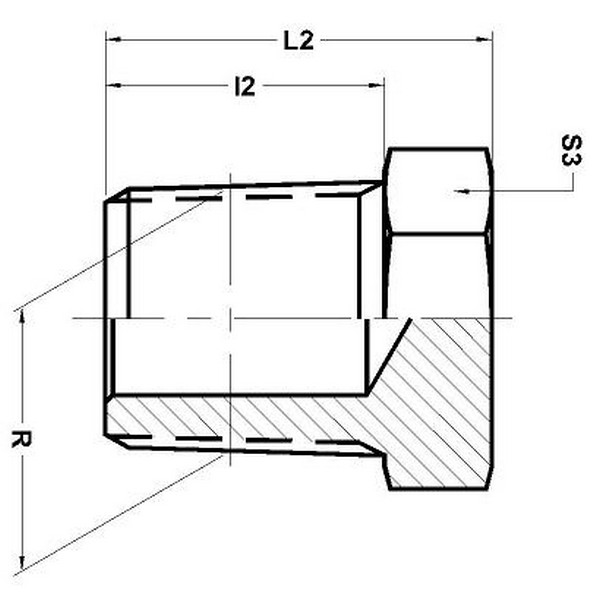

| Part No. | R | L2 | l2 | S3 |
|---|---|---|---|---|
| HP 1/8 BSPT | 1/8-28 | 15 | 10 | 12 |
| HP 1/4 BSPT | 1/4-19 | 20 | 14 | 14 |
| HP 3/8 BSPT | 3/8-19 | 21.5 | 14 | 19 |
| HP 1/2 BSPT | 1/2-14 | 23 | 16 | 22 |
| HP 3/4 BSPT | 3/4-14 | 26 | 19 | 27 |
| HP 1 BSPT | 1-11 | 30 | 22 | 36 |
| HP 11/4 BSPT | 11/4-11 | 35 | 26 | 46 |
| HP 11/2 BSPT | 11/2-11 | 39 | 27 | 50 |
| HP 2 BSPT | 2-11 | 38 | 27 | 65 |
