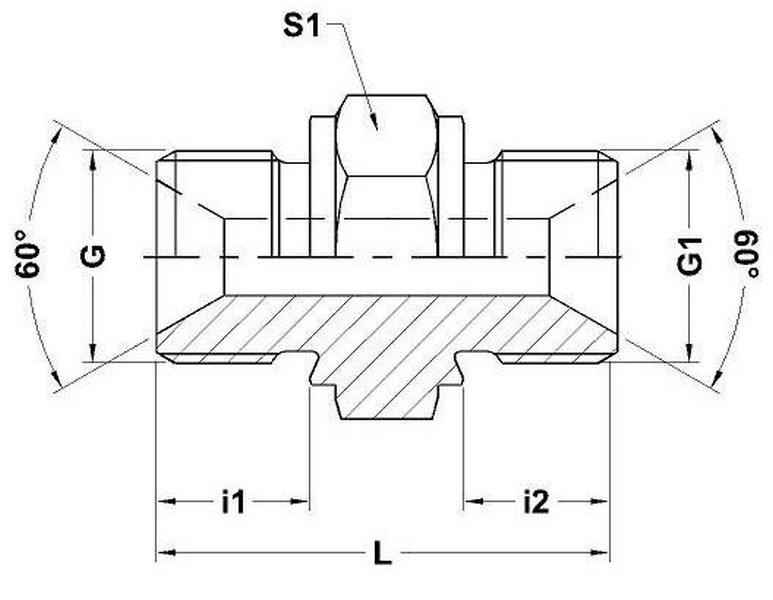

HA Male Threads - BSP
| Part No. |
Male Stud G |
Male Stud G1 |
L |
i1 |
i2 |
S1 |
| HA 1/8 X 1/8 |
1/8 |
1/8 |
27 |
8 |
8 |
14 |
| HA 1/8 X 1/4 |
1/8 |
1/4 |
31.5 |
8 |
12 |
19 |
| HA 1/4 X 1/4 |
1/4 |
1/4 |
36 |
12 |
12 |
19 |
| HA 1/4 X 3/8 |
1/4 |
3/8 |
38.5 |
12 |
12 |
22 |
| HA 1/4 X 1/2 |
1/4 |
1/2 |
41 |
12 |
14 |
27 |
| HA 3/8 X 3/8 |
3/8 |
3/8 |
39 |
12 |
12 |
22 |
| HA 3/8 X 1/2 |
3/8 |
1/2 |
41.5 |
12 |
14 |
27 |
| HA 3/8 X 3/4 |
3/8 |
3/4 |
45.5 |
12 |
16 |
32 |
| HA 1/2 X 1/2 |
1/2 |
1/2 |
44 |
14 |
14 |
27 |
| HA 1/2 X 3/4 |
1/2 |
3/4 |
48 |
14 |
16 |
32 |
| HA 1/2 X 1 |
1/2 |
1 |
50 |
14 |
18 |
41 |
| HA 3/4 X 3/4 |
3/4 |
3/4 |
50 |
16 |
16 |
32 |
| HA 3/4 X 1 |
3/4 |
1 |
52 |
16 |
18 |
41 |
| HA 3/4 X 11/4 |
3/4 |
11/4 |
58 |
16 |
20 |
50 |
| HA 1 X 1 |
1 |
1 |
54 |
18 |
18 |
41 |
| HA 1 X 11/4 |
1 |
11/4 |
60 |
18 |
20 |
50 |
| HA 1 X 11/2 |
1 |
11/2 |
63 |
18 |
22 |
55 |
| HA 11/4 X 11/4 |
11/4 |
11/4 |
62 |
20 |
20 |
50 |
| HA 11/4 X 11/2 |
11/4 |
11/2 |
65 |
20 |
22 |
55 |
| HA 11/2 X 11/2 |
11/2 |
11/2 |
67 |
22 |
22 |
55 |
| HA 2 X 2 |
2 |
2 |
72 |
24 |
24 |
70 |
| HA 2 X 11/2 |
2 |
11/2 |
70 |
24 |
22 |
70 |
