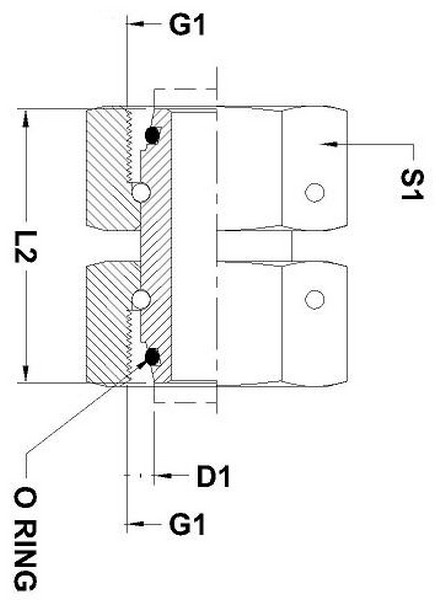

| Part No. | Series | Tube OD D1 | S1 | L2 | G1 |
|---|---|---|---|---|---|
| GZ 06-L | Light-250 Bar | 6 | 14 | 32 | M12 X 15 |
| GZ 08-L | Light-250 Bar | 8 | 17 | 32 | M14 X 1.5 |
| GZ 10-L | Light-250 Bar | 10 | 19 | 33 | M16 X 1.5 |
| GZ 12-L | Light-250 Bar | 12 | 22 | 33 | M18 X 1.5 |
| GZ 15-L | Light-250 Bar | 15 | 27 | 38 | M22 X 1.5 |
| GZ 18-L | Light-160 Bar | 18 | 32 | 36 | M26 X 1.5 |
| GZ 22-L | Light-160 Bar | 22 | 36 | 42 | M30 X 2.0 |
| GZ 28-L | Light-100 Bar | 28 | 41 | 46 | M36 X 2.0 |
| GZ 35-L | Light-100 Bar | 35 | 50 | 48 | M45 X 2.0 |
| GZ 42-L | Light-100 Bar | 42 | 60 | 52 | M52 X 2.0 |
| GZ 06-S | Heavy-630 Bar | 6 | 17 | 32 | M14 X 1.5 |
| GZ 08-S | Heavy-630 Bar | 8 | 19 | 33 | M16 X 1.5 |
| GZ 10-S | Heavy-630 Bar | 10 | 22 | 33 | M18 X 1.5 |
| GZ 12-S | Heavy-630 Bar | 12 | 24 | 36 | M20 X 1.5 |
| GZ 14-S | Heavy-630 Bar | 14 | 27 | 39 | M22 X 1.5 |
| GZ 16-S | Heavy-400 Bar | 16 | 30 | 39 | M24 X 1.5 |
| GZ 20-S | Heavy-400 Bar | 20 | 36 | 44 | M30 X 2.0 |
| GZ 25-S | Heavy-400 Bar | 25 | 46 | 46 | M36 X 2.0 |
| GZ 30-S | Heavy-250 Bar | 30 | 50 | 52 | M42 X 2.0 |
| GZ 38-S | Heavy-250 Bar | 38 | 60 | 52 | M52 X 2.0 |
| Dimensions given approx., fig. with tightened nut Temp range without pressure reductions for 'O' Ring sealing of NBR (buna N- Std) -35° to +100° C, for FPM (Viton - On request) -25° to +120° C. |
