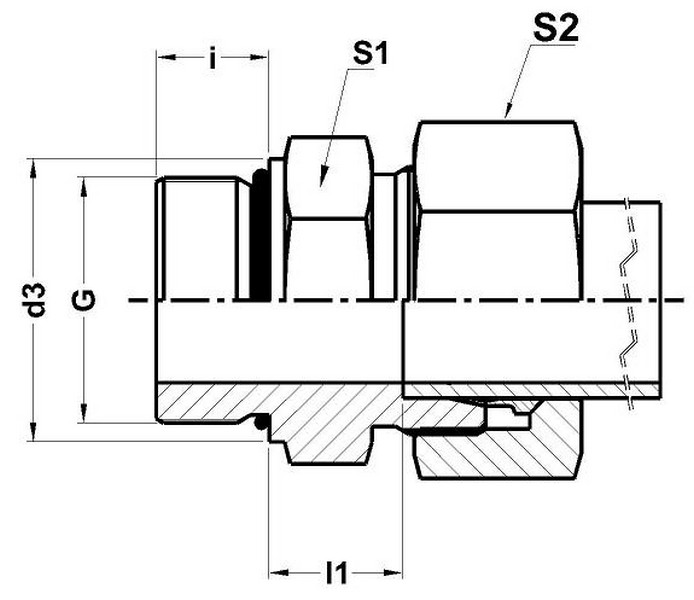

| Part No. | Series | Tube OD | G | d3 | i | l1 | S1 | S2 | O' Ring |
|---|---|---|---|---|---|---|---|---|---|
| GEO 06-LM | Light-250 Bar | 6 | M10 X 1 | - | 8.5 | 9.5 | 14 | 14 | 8.2 X 1.5 |
| GEO 08-LM | Light-250 Bar | 8 | M12 X 1.5 | - | 11 | 10 | 17 | 17 | 9.4 X 2.1 |
| GEO 10-LM | Light-250 Bar | 10 | M14 X 1.5 | - | 11 | 11 | 19 | 19 | 11.4 X 2.1 |
| GEO 12-LM | Light-250 Bar | 12 | M16 X 1.5 | - | 11.5 | 12.5 | 22 | 22 | 13.4 X 2.1 |
| GEO 15-LM | Light-250 Bar | 15 | M18 X 1.5 | - | 12.5 | 13.5 | 24 | 27 | 15.4 X 2.1 |
| GEO 18-LM | Light-160 Bar | 18 | M22 X 1.5 | - | 13 | 14.5 | 27 | 32 | 19.4 X 2.1 |
| GEO 22-LM | Light-160 Bar | 22 | M26 X 1.5 | 36 | 16 | 16 | 32 | 36 | 22.7 X 2.8 |
| GEO 28-LM | Light-100 Bar | 28 | M33 X 2.0 | 38 | 16 | 17.5 | 41 | 41 | 29.7 X 2.8 |
| GEO 35-LM | Light-100 Bar | 35 | M42 X 2.0 | 48 | 16 | 17.5 | 50 | 50 | 38.7 X 2.8 |
| GEO 06-SM | Heavy-630 Bar | 6 | M12 X 1.5 | - | 12 | 12 | 17 | 17 | 9.4 X 2.1 |
| GEO 08-SM | Heavy-630 Bar | 8 | M14 X 1.5 | - | 11 | 15 | 19 | 19 | 11.4 X 2.1 |
| GEO 10-SM | Heavy-630 Bar | 10 | M16 X 1.5 | - | 12.5 | 15 | 22 | 22 | 13.4 X 2.1 |
| GEO 12-SM | Heavy-630 Bar | 12 | M18 X 1.5 | - | 14 | 17 | 24 | 24 | 15.4 X 2.1 |
| GEO 16-SM | Heavy-400 Bar | 16 | M22 X 1.5 | - | 15 | 18.5 | 27 | 30 | 19.4 X 2.1 |
| GEO 20-SM | Heavy-400 Bar | 20 | M27 X 2.0 | - | 18.5 | 20.5 | 32 | 36 | 23.7 X 2.8 |
| GEO 25-SM | Heavy-400 Bar | 25 | M33 X 2.0 | 38 | 18.5 | 23 | 41 | 46 | 29.7 X 2.8 |
| GEO 30-SM | Heavy-250 Bar | 30 | M42 X 2.0 | 48 | 19 | 23.5 | 50 | 50 | 38.7 X 2.8 |
| Dimensions given approx. fig. with tightened nut Temp range without pressure reductions for 'O' Ring sealing of NBR (buna N- Std) -35° to +100° C, for FPM (Viton - On request) -25° to +120° C. |
