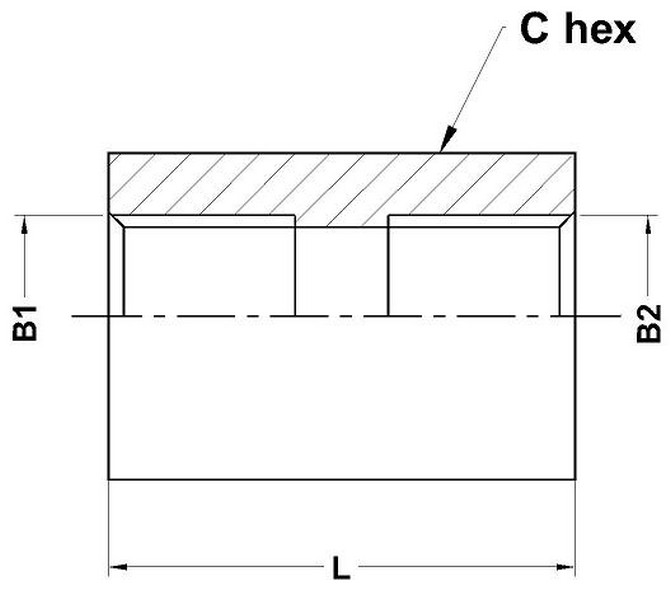

| Part No. | Male Stud B1 | Male Stud B2 | L | C |
|---|---|---|---|---|
| FS 1/8 X 1/8 | 1/8 | 1/8 | 19 | 14 |
| FS 1/4 X 1/8 | 1/4 | 1/8 | 29 | 19 |
| FS 1/4 X 1/4 | 1/4 | 1/4 | 29 | 19 |
| FS 3/8 X 1/4 | 3/8 | 1/4 | 29 | 22 |
| FS 3/8 X 3/8 | 3/8 | 3/8 | 29 | 22 |
| FS 1/2 X 3/8 | 1/2 | 3/8 | 38 | 27 |
| FS 1/2 X 1/2 | 1/2 | 1/2 | 38 | 27 |
| FS 3/4 X 1/2 | 3/4 | 1/2 | 39 | 32 |
| FS 3/4 X 3/4 | 3/4 | 3/4 | 39 | 32 |
| FS 1 X 3/4 | 1 | 3/4 | 48 | 41 |
| FS 1 X 1 | 1 | 1 | 48 | 41 |
| FS 11/4 X 11/4 | 1 1/4 | 1 1/4 | 49 | 50 |
| FS 11/2 X 11/2 | 1 1/2 | 1 1/2 | 49 | 55 |
| FS 2 X 2 | 2 | 2 | 50 | 70 |
