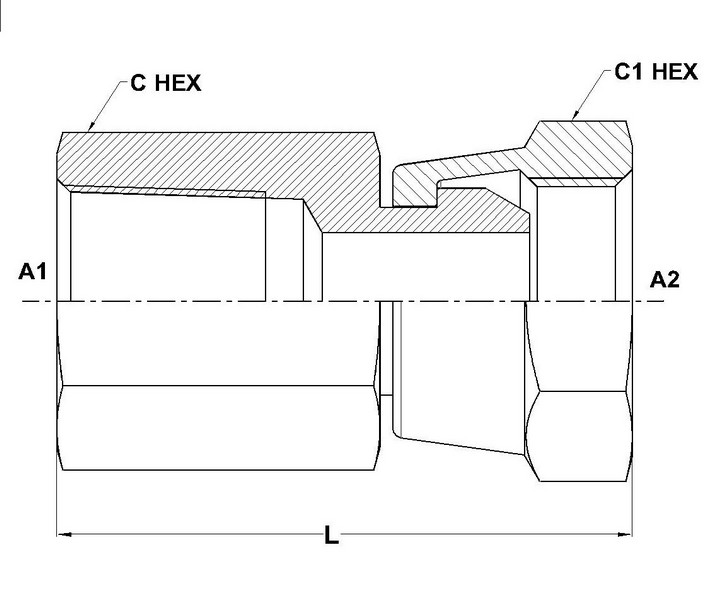

1405 Series SAE# 140131
| PART NO. SIZE |
A1 NPTF |
A2 NPSM |
A2 DRILL |
L1 HEX |
L LGTH |
C HEX |
C1 HEX |
| 1405-02-02 |
1/8-27 |
1/8-27 |
0.150 |
0.88 |
1.02 |
0.562 |
0.562 |
| 1405-02-04 |
1/8-27 |
1/4-18 |
0.220 |
1.10 |
1.29 |
0.688 |
0.688 |
| 1405-04-02 |
1/4-18 |
1/8-27 |
0.150 |
1.19 |
1.33 |
0.688 |
0.562 |
| 1405-04-04 |
1/4-18 |
1/4-18 |
0.220 |
1.23 |
1.42 |
0.688 |
0.688 |
| 1405-04-06 |
1/4-18 |
3/8-18 |
0.340 |
1.27 |
1.48 |
0.688 |
0.875 |
| 1405-04-08 |
1/4-18 |
1/2-14 |
0.460 |
1.32 |
1.60 |
1.000 |
1.000 |
| 1405-06-04 |
3/8-18 |
1/4-18 |
0.220 |
1.29 |
1.48 |
0.875 |
0.688 |
| 1405-06-06 |
3/8-18 |
3/8-18 |
0.340 |
1.31 |
1.52 |
0.875 |
0.875 |
| 1405-06-08 |
3/8-18 |
1/2-14 |
0.460 |
1.50 |
1.78 |
1.000 |
1.000 |
| 1405-08-04 |
1/2-14 |
1/4-18 |
0.220 |
1.56 |
1.75 |
1.000 |
0.688 |
| 1405-08-06 |
1/2-14 |
3/8-18 |
0.340 |
1.45 |
1.66 |
0.875 |
0.875 |
| 1405-08-08 |
1/2-14 |
1/2-14 |
0.460 |
1.56 |
1.84 |
1.000 |
1.000 |
| 1405-08-12 |
1/2-14 |
3/4-14 |
0.635 |
1.62 |
1.97 |
1.250 |
1.250 |
| 1405-12-08 |
3/4-14 |
1/2-14 |
0.460 |
1.63 |
1.91 |
1.250 |
1.000 |
| 1405-12-12 |
3/4-14 |
3/4-14 |
0.635 |
1.62 |
1.97 |
1.250 |
1.250 |
| 1405-12-16 |
3/4-14 |
1-11-1/2 |
0.831 |
1.83 |
2.18 |
1.500 |
1.500 |
| 1405-16-12 |
1-11-1/2 |
3/4-14 |
0.635 |
1.90 |
2.25 |
1.500 |
1.250 |
| 1405-16-16 |
1-11-1/2 |
1-11-1/2 |
0.831 |
2.00 |
2.35 |
1.500 |
1.500 |
| 1405-20-20 |
1-1/4-11-1/2 |
1-1/4-11-1/2 |
1.087 |
1.98 |
2.40 |
1.875 |
1.875 |
| 1405-24-24 |
1-1/2-11-1/2 |
1-1/2-11-1/2 |
1.317 |
2.10 |
2.52 |
2.125 |
2.125 |
| 1405-32-32 |
2-11-1/2 |
2-11-1/2 |
1.802 |
2.13 |
2.55 |
2.625 |
2.625 |
