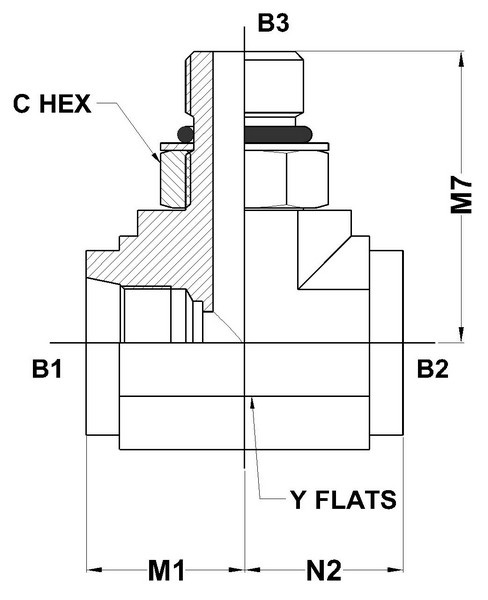

6832-NWO Series
| PART NO.SIZE |
TUBE O.D. |
B1 SAE ORB |
B2 SAE ORB |
B3 SAE ORB |
B3 DRILL |
M1 LGTH |
N2 LGTH |
M7 LGTH |
C HEX |
Y FLATS |
| 6832-04-04-04-NWO-FG |
1/4 |
7/16-20 |
7/16-20 |
7/16-20 |
0.172 |
0.63 |
0.63 |
1.23 |
0.563 |
0.750 |
| 6832-06-06-06-NWO-FG |
3/8 |
9/16-18 |
9/16-18 |
9/16-18 |
0.297 |
0.75 |
0.75 |
1.38 |
0.688 |
0.875 |
| 6832-08-05-08-NWO-FG |
1/2 |
3/4-16 |
1/2-20 |
3/4-16 |
0.391 |
0.88 |
0.88 |
1.59 |
0.875 |
1.062 |
| 6832-08-08-08-NWO-FG |
1/2 |
3/4-16 |
3/4-16 |
3/4-16 |
0.391 |
0.88 |
0.88 |
1.59 |
0.875 |
1.062 |
| 6832-10-10-10-NWO-FG |
5/8 |
7/8-14 |
7/8-14 |
7/8-14 |
0.484 |
1.02 |
1.02 |
1.81 |
1.000 |
1.062 |
| 6832-12-12-12-NWO-FG |
3/4 |
1-1/16-12 |
1-1/16-12 |
1-1/16-12 |
0.609 |
1.21 |
1.21 |
2.00 |
1.250 |
1.312 |
| 6832-16-16-16-NWO-FG |
1 |
1-5/16-12 |
1-5/16-12 |
1-5/16-12 |
0.844 |
1.33 |
1.33 |
2.25 |
1.500 |
1.625 |
