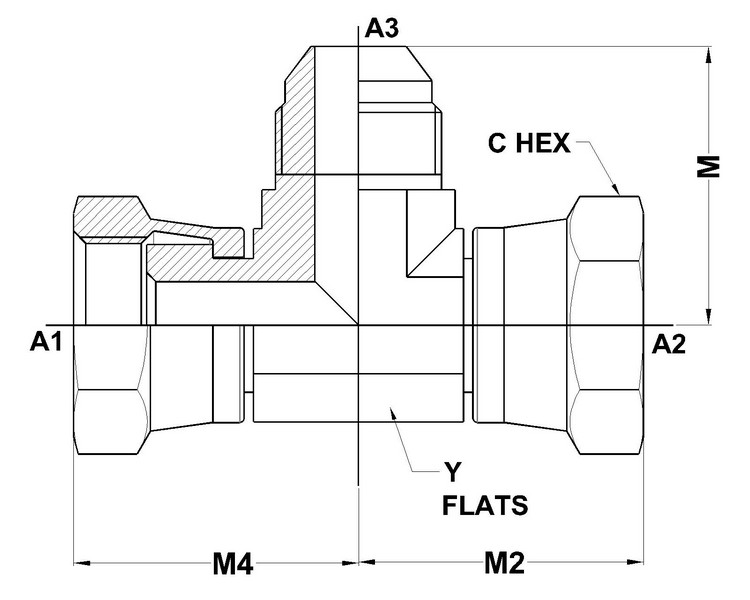

6603 Series
| PART NO.SIZE |
TUBE O.D. |
A1 SAE 37 |
A2 SAE 37 |
A3 SAE 37 |
A1 DRILL |
A2 DRILL |
A3 DRILL |
M4 LGTH |
M2 LGTH |
M LGTH |
C HEX |
Y FLATS |
| 6603-04-04-04-FG |
1/4 |
7/16-20 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
0.172 |
0.65 |
1.00 |
0.89 |
0.563 |
0.438 |
| 6603-06-06-06-FG |
3/8 |
9/16-18 |
9/16-18 |
9/16-18 |
0.297 |
0.297 |
0.297 |
0.87 |
1.25 |
1.06 |
0.688 |
0.562 |
| 6603-08-08-08-FG |
1/2 |
3/4-16 |
3/4-16 |
3/4-16 |
0.391 |
0.391 |
0.391 |
0.95 |
1.38 |
1.25 |
0.875 |
0.750 |
| 6603-10-10-10-FG |
5/8 |
7/8-14 |
7/8-14 |
7/8-14 |
0.484 |
0.484 |
0.484 |
1.12 |
1.62 |
1.45 |
1.000 |
0.875 |
| 6603-12-12-12-FG |
3/4 |
1-1/16-12 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.609 |
0.609 |
1.18 |
1.75 |
1.66 |
1.250 |
1.062 |
| 6603-16-16-16-FG |
1 |
1-5/16-12 |
1-5/16-12 |
1-5/16-12 |
0.844 |
0.844 |
0.844 |
1.40 |
2.00 |
1.81 |
1.500 |
1.312 |
