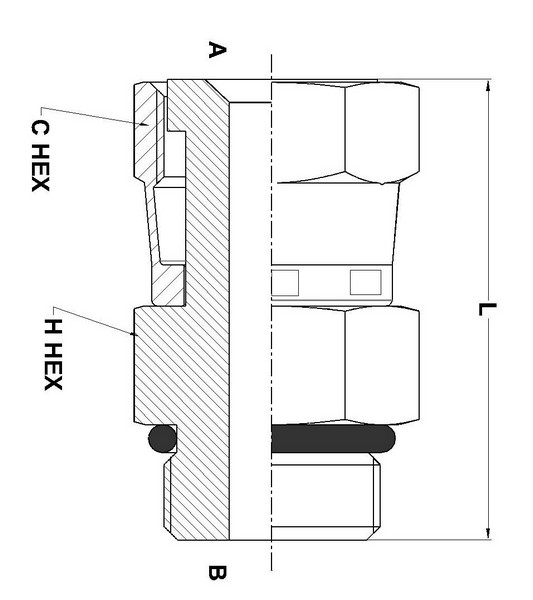

FS6540 Series
| PART NO.SIZE |
TUBE O.D. |
A THREAD |
B MORB |
A DRILL |
B DRILL |
L LGTH |
C HEX |
H HEX |
| FS6540-04-04-O |
1/4 |
9/16-18 |
7/16-20 |
0.165 |
0.172 |
1.463 |
0.687 |
0.625 |
| FS6540-06-06-O |
3/8 |
11/16-16 |
9/16-18 |
0.264 |
0.264 |
1.582 |
0.812 |
0.750 |
| FS6540-08-06-O |
1/2 |
13/16-16 |
9/16-18 |
0.358 |
0.264 |
1.862 |
0.938 |
0.875 |
| FS6540-08-08-O |
1/2 |
13/16-16 |
3/4-16 |
0.358 |
0.378 |
1.941 |
0.938 |
0.875 |
| FS6540-10-10-O |
5/8 |
1-14 |
7/8-14 |
0.453 |
0.484 |
2.120 |
1.125 |
1.062 |
| FS6540-10-12-O |
5/8 |
1-14 |
1-1/16-12 |
0.453 |
0.609 |
2.218 |
1.125 |
1.250 |
| FS6540-12-12-O |
3/4 |
1-3/16-12 |
1-1/16-12 |
0.547 |
0.609 |
2.348 |
1.375 |
1.250 |
| FS6540-16-16-O |
1 |
1-7/16-12 |
1-5/16-12 |
0.783 |
0.811 |
2.658 |
1.625 |
1.500 |
| FS6540-20-20-O |
1-1/4 |
1-11/16-12 |
1-5/8-12 |
1.024 |
1.024 |
2.658 |
1.875 |
1.875 |
| FS6540-24-24-O |
1-1/2 |
2-12 |
1-7/8-12 |
1.260 |
1.260 |
2.658 |
2.250 |
2.125 |
