EGE-M-ED - STRAIGHT STUD ADAPTOR WITH SWIVEL NUT

Metric Bite Type Fittings
EGE-M-ED

EGE-M-ED - STRAIGHT STUD ADAPTOR WITH SWIVEL NUT

Enquiry
Download PDF

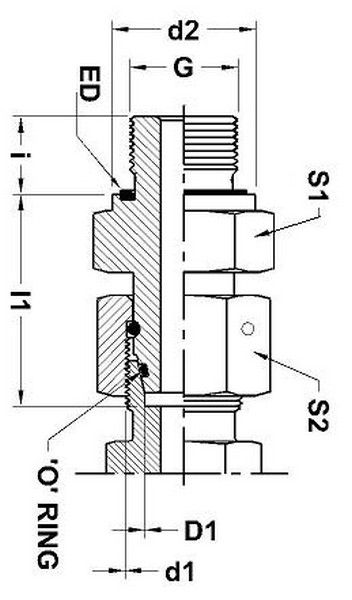

EGE-M-ED
Part No. Series Tube OD D1 d1 l1 i S1 S2 d2 G O' Ring
EGE 06-LM-ED Light-250 Bar 6 M12 X 15 24.5 8 14 14 14 M10 X 1 4 X 1.5
EGE 08-LM-ED Light-250 Bar 8 M14 X 1.5 29.5 12 19 17 19 M12 X 1.5 6 X 1.5
EGE 10-LM-ED Light-250 Bar 10 M16 X 1.5 27.5 12 19 19 19 M14 X 1.5 7.5 X 1.5
EGE 12-LM-ED Light-250 Bar 12 M18 X 1.5 34 12 22 22 22 M16 X 1.5 9 X 1.5
EGE 15-LM-ED Light-250 Bar 15 M22 X 1.5 32 14 27 27 27 M18 X 1.5 12 X 2
EGE 18-LM-ED Light-160 Bar 18 M26 X 1.5 31.5 14 27 32 27 M22 X 1.5 15 X 2
EGE 22-LM-ED Light-160 Bar 22 M30 X 2.0 32.5 16 32 36 32 M26 X 1.5 20 X 2
EGE 28-LM-ED Light-100 Bar 28 M36 X 2.0 35 18 41 41 40 M33 X 2.0 26 X 2
EGE 35-LM-ED Light-100 Bar 35 M45 X 2.0 42.5 20 50 50 50 M42 X 2.0 32 X 2.5
EGE 42-LM-ED Light-100 Bar 42 M52 X 2.0 46.5 22 55 60 55 M48 X 2.0 38 X 2.5
EGE 06-SM-ED Heavy-630 Bar 6 M14 X 1.5 27 12 19 17 19 M12 X 1.5 4 X 1.5
EGE 08-SM-ED Heavy-630 Bar 8 M16 X 1.5 29.5 12 19 19 19 M14 X 1.5 6 X 1.5
EGE 10-SM-ED Heavy-630 Bar 10 M18 X 1.5 32 12 22 22 22 M16 X 1.5 7.5 X 1.5
EGE 12-SM-ED Heavy-630 Bar 12 M20 X 1.5 34 12 22 24 22 M18 X 1.5 9 X 1.5
EGE 14-SM-ED Heavy-630 Bar 14 M22 X 1.5 36.5 14 27 27 27 M20 X 1.5 10 X 2
EGE 16-SM-ED Heavy-400 Bar 16 M24 X 1.5 37 14 27 30 27 M22 X 1.5 12 X 2
EGE 20-SM-ED Heavy-400 Bar 20 M30 X 2.0 43 16 32 36 32 M27 X 2.0 16.3 X 2.4
EGE 25-SM-ED Heavy-400 Bar 25 M36 X 2.0 48 18 41 46 40 M33 X 2.0 20.3 X 2.4
EGE 30-SM-ED Heavy-250 Bar 30 M42 X 2.0 51 20 50 50 50 M42 X 2.0 25.3 X 2.4
EGE 38-SM-ED Heavy-250 Bar 38 M52 X 2.0 60 22 55 60 55 M48 X 2.0 33.3 X 2.4
Dimensions given approx.,
fig. with tightened nut
Temp range without pressure reductions
for 'O' Ring sealing of NBR
(buna N- Std) -35° to +100° C, for FPM
(Viton - On request) -25° to +120° C.
