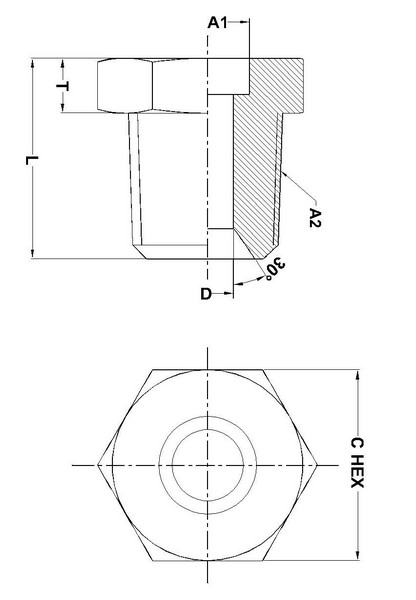

0404 Series
| PART NO. SIZE |
TUBE O.D. |
A1 BORE |
A2 NPTF |
D DRILL |
L LGTH |
T WIDTH |
C HEX |
| 0404-04-02 |
1/4 |
0.256 |
1/8-27 |
0.188 |
0.562 |
0.19 |
0.500 |
| 0404-04-04 |
1/4 |
0.256 |
1/4-18 |
0.281 |
0.843 |
0.27 |
0.625 |
| 0404-06-04 |
3/8 |
0.381 |
1/4-18 |
0.281 |
0.812 |
0.25 |
0.625 |
| 0404-06-06 |
3/8 |
0.381 |
3/8-18 |
0.406 |
0.875 |
0.31 |
0.750 |
| 0404-08-06 |
1/2 |
0.506 |
3/8-18 |
0.406 |
0.843 |
0.28 |
0.812 |
| 0404-08-08 |
1/2 |
0.506 |
1/2-14 |
0.531 |
1.100 |
0.36 |
0.875 |
| 0404-10-06 |
5/8 |
0.631 |
3/8-18 |
0.406 |
0.843 |
0.28 |
0.812 |
| 0404-10-08 |
5/8 |
0.631 |
1/2-14 |
0.531 |
1.078 |
0.33 |
0.937 |
| 0404-12-08 |
3/4 |
0.757 |
1/2-14 |
0.531 |
1.080 |
0.36 |
0.937 |
| 0404-12-12 |
3/4 |
0.757 |
3/4-14 |
0.719 |
1.093 |
0.34 |
1.125 |
| 0404-16-12 |
1 |
1.007 |
3/4-16 |
0.719 |
1.260 |
0.50 |
1.250 |
| 0404-16-16 |
1 |
1.007 |
1-11 1/2 |
0.938 |
1.312 |
0.38 |
1.375 |
| 0404-20-16 |
1-1/4 |
1.258 |
1-11 1/2 |
0.938 |
1.376 |
0.44 |
1.688 |
| 0404-20-20 |
1-1/4 |
1.258 |
1-1/4-11 1/2 |
1.250 |
1.406 |
0.44 |
1.688 |
| 0404-24-16 |
1-1/2 |
1.508 |
1-11 1/2 |
0.938 |
1.375 |
0.50 |
1.750 |
| 0404-24-24 |
1-1/2 |
1.508 |
1-1/2-11 1/2 |
1.500 |
1.500 |
0.50 |
2.000 |
| 0404-32-32 |
2 |
2.008 |
2-11 1/2 |
1.938 |
1.781 |
0.75 |
2.625 |
