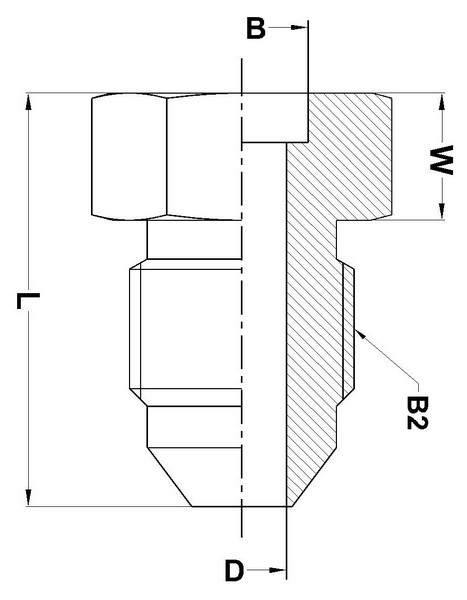

0403 Series
| PART NO. SIZE |
TUBE O.D. |
B2 THREAD |
B BORE |
D DRILL |
L LGTH |
W WIDTH |
C HEX |
| 0403-04-04 |
1/4 |
7/16-20 |
0.256 |
0.172 |
0.796 |
0.220 |
0.500 |
| 0403-05-04 |
5/16 |
7/16-20 |
0.319 |
0.172 |
0.796 |
0.220 |
0.500 |
| 0403-05-05 |
5/16 |
1/2-20 |
0.319 |
0.234 |
0.796 |
0.220 |
0.562 |
| 0403-06-06 |
3/8 |
9/16-18 |
0.381 |
0.297 |
0.843 |
0.250 |
0.625 |
| 0403-06-08 |
3/8 |
3/4-16 |
0.381 |
0.391 |
0.937 |
0.250 |
0.812 |
| 0403-08-06 |
1/2 |
9/16-18 |
0.506 |
0.297 |
0.837 |
0.250 |
0.812 |
| 0403-08-08 |
1/2 |
3/4-16 |
0.506 |
0.391 |
0.937 |
0.250 |
0.812 |
| 0403-08-10 |
1/2 |
7/8-14 |
0.506 |
0.484 |
1.093 |
0.310 |
0.937 |
| 0403-10-08 |
5/8 |
3/4-16 |
0.631 |
0.391 |
0.937 |
0.250 |
0.937 |
| 0403-10-10 |
5/8 |
7/8-14 |
0.631 |
0.484 |
1.093 |
0.310 |
0.937 |
| 0403-10-12 |
5/8 |
1-1/16-12 |
0.631 |
0.609 |
1.281 |
0.380 |
1.250 |
| 0403-12-08 |
3/4 |
3/4-16 |
0.757 |
0.391 |
0.937 |
0.380 |
1.250 |
| 0403-12-10 |
3/4 |
7/8-14 |
0.757 |
0.484 |
1.093 |
0.380 |
1.250 |
| 0403-12-12 |
3/4 |
1-1/16-12 |
0.757 |
0.609 |
1.281 |
0.380 |
1.250 |
| 0403-14-14 |
7/8 |
1-3/16-12 |
0.882 |
0.719 |
1.312 |
0.380 |
1.375 |
| 0403-16-12 |
1 |
1-1/16-12 |
1.007 |
0.609 |
1.281 |
0.380 |
1.375 |
| 0403-16-16 |
1 |
1-5/16-12 |
1.007 |
0.844 |
1.328 |
0.380 |
1.375 |
| 0403-16-20 |
1 |
1-5/8-12 |
1.007 |
1.078 |
1.453 |
0.460 |
1.688 |
| 0403-20-16 |
1-1/4 |
1-5/16-12 |
1.258 |
0.844 |
1.328 |
0.460 |
1.688 |
| 0403-20-20 |
1-1/4 |
1-5/8-12 |
1.258 |
1.078 |
1.453 |
0.460 |
1.688 |
| 0403-20-24 |
1-1/4 |
1-7/8-12 |
1.258 |
1.312 |
1.656 |
0.530 |
2.000 |
| 0403-24-20 |
1-1/2 |
1-5/8-12 |
1.508 |
1.078 |
1.453 |
0.530 |
2.000 |
| 0403-24-24 |
1-1/2 |
1-7/8-12 |
1.508 |
1.312 |
1.656 |
0.530 |
2.000 |
| 0403-32-32 |
2 |
2-1/2-12 |
2.008 |
1.781 |
2.046 |
0.680 |
2.625 |
