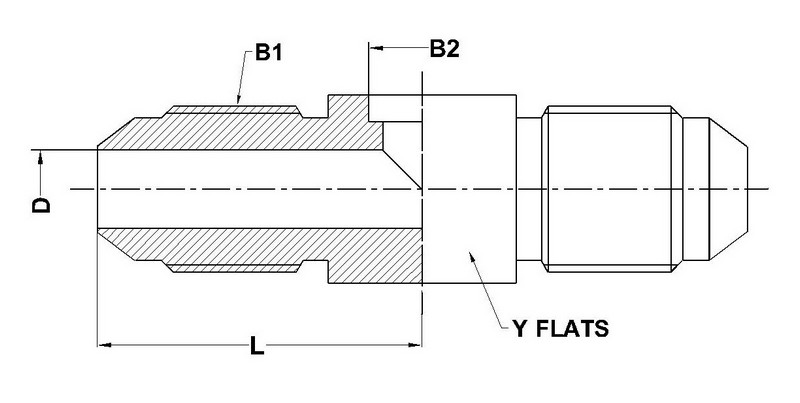

| PART NO. SIZE | TUBE O.D. | B1 JIC | B2 BORE | D DRILL | L LGTH | Y FLATS |
|---|---|---|---|---|---|---|
| 0702-05-05-05 | 5/16 | 1/2-20 | 0.319 | 0.234 | 0.970 | 0.562 |
| 0702-06-06-06 | 3/8 | 9/16-18 | 0.381 | 0.297 | 1.090 | 0.625 |
| 0702-08-08-08 | 1/2 | 3/4-16 | 0.506 | 0.391 | 1.250 | 0.812 |
| 0702-10-10-10 | 5/8 | 7/8-14 | 0.631 | 0.484 | 1.450 | 0.937 |
| 0702-12-12-12 | 3/4 | 1-1/16-12 | 0.757 | 0.609 | 1.660 | 1.125 |
| 0702-16-16-16 | 1 | 1-5/16-12 | 1.007 | 0.844 | 1.810 | 1.375 |
