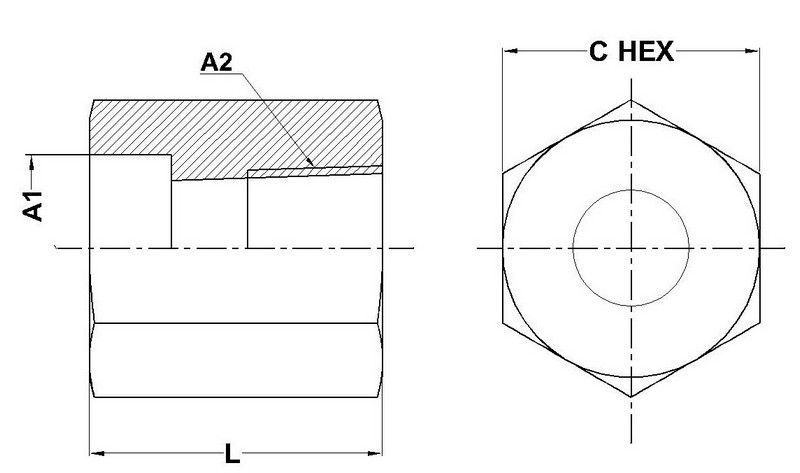

| PART NO. SIZE | TUBE O.D. | A1 BORE | A2 NPTF | L LGTH | C HEX |
|---|---|---|---|---|---|
| 0405-04-02 | 1/4 | 0.256 | 1/8-27 | 0.640 | 0.562 |
| 0405-06-04 | 3/8 | 0.381 | 1/4-18 | 0.843 | 0.750 |
| 0405-08-06 | 1/2 | 0.506 | 3/8-18 | 0.906 | 0.875 |
| 0405-12-12 | 3/4 | 0.757 | 3/4-14 | 1.203 | 1.375 |
| 0405-16-16 | 1 | 1.007 | 1-11-1/2 | 1.437 | 1.625 |
| 0405-20-20 | 1-1/4 | 1.258 | 1-1/4-11-1/2 | 1.531 | 2.000 |
