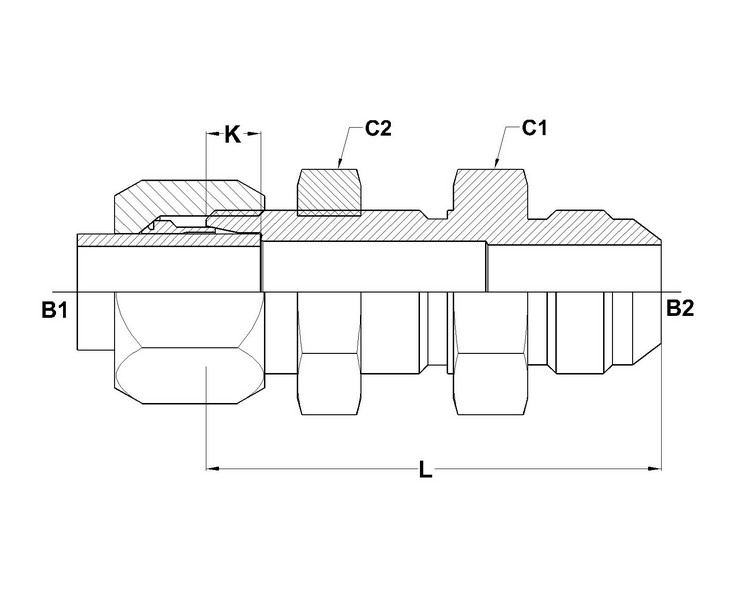

| PART NO.SIZE | TUBE O.D. | B1 THREAD | B2 THREAD | B1 DRILL | B2 DRILL | K DEPTH | L LGTH | C1 HEX | C2 HEX |
|---|---|---|---|---|---|---|---|---|---|
| C2702-04-04 | 1/4 | 7/16-20 | 7/16-20 | 0.203 | 0.172 | 0.234 | 1.94 | 0.688 | 0.688 |
| C2702-06-06 | 3/8 | 9/16-18 | 9/16-18 | 0.281 | 0.297 | 0.250 | 2.08 | 0.812 | 0.812 |
| C2702-08-08 | 1/2 | 3/4-16 | 3/4-16 | 0.422 | 0.391 | 0.305 | 2.31 | 1.000 | 1.000 |
| C2702-12-12 | 3/4 | 1-1/16-12 | 1-1/16-12 | 0.656 | 0.609 | 0.350 | 2.94 | 1.375 | 1.375 |
