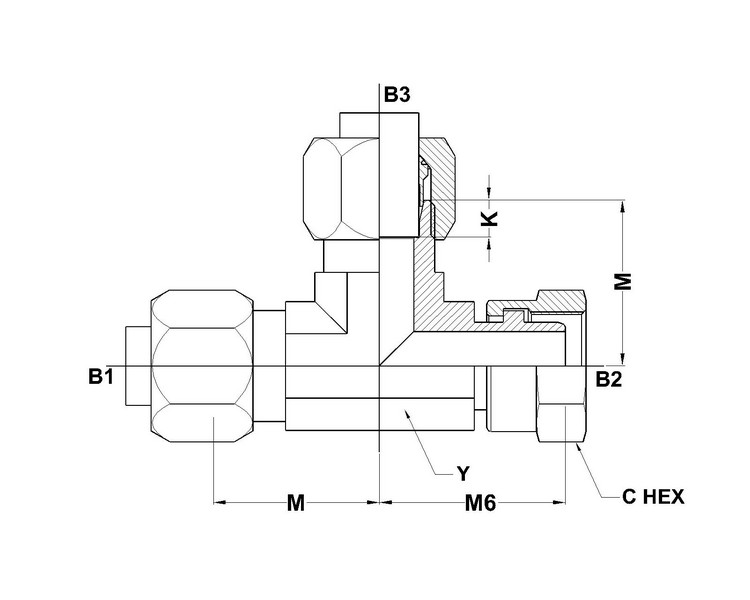

C6602 Series SAE# 080432 / MS# 51854
| PART NO.SIZE |
TUBE O.D. |
B1 THREAD |
B2 THREAD |
B3 THREAD |
B1 DRILL |
B2 DRILL |
B3 DRILL |
K DEPTH |
M LGTH |
M6 LGTH |
C HEX |
Y FLATS |
| C6602-04-04-04-FG |
1/4 |
7/16-20 |
7/16-20 |
7/16-20 |
0.203 |
0.203 |
0.203 |
0.234 |
0.89 |
1.05 |
0.562 |
0.438 |
| C6602-06-06-06-FG |
3/8 |
9/16-18 |
9/16-18 |
9/16-18 |
0.281 |
0.281 |
0.281 |
0.250 |
1.05 |
1.28 |
0.688 |
0.562 |
| C6602-08-08-08-FG |
1/2 |
3/4-16 |
3/4-16 |
3/4-16 |
0.422 |
0.422 |
0.422 |
0.305 |
1.25 |
1.47 |
0.875 |
0.750 |
| C6602-12-12-12-FG |
3/4 |
1-1/16-12 |
1-1/16-12 |
1-1/16-12 |
0.656 |
0.656 |
0.656 |
0.350 |
1.58 |
1.77 |
1.250 |
1.062 |
| C6602-16-16-16-FG |
1 |
1-5/16-12 |
1-5/16-12 |
1-5/16-12 |
0.875 |
0.875 |
0.875 |
0.415 |
1.73 |
1.86 |
1.500 |
1.312 |
