BT-BT Tube Union Straight

Flareless Bite Type Fittings
C2403 Series

BT-BT Tube Union Straight


C2403 Series SAE# 080101 / MS# 51814

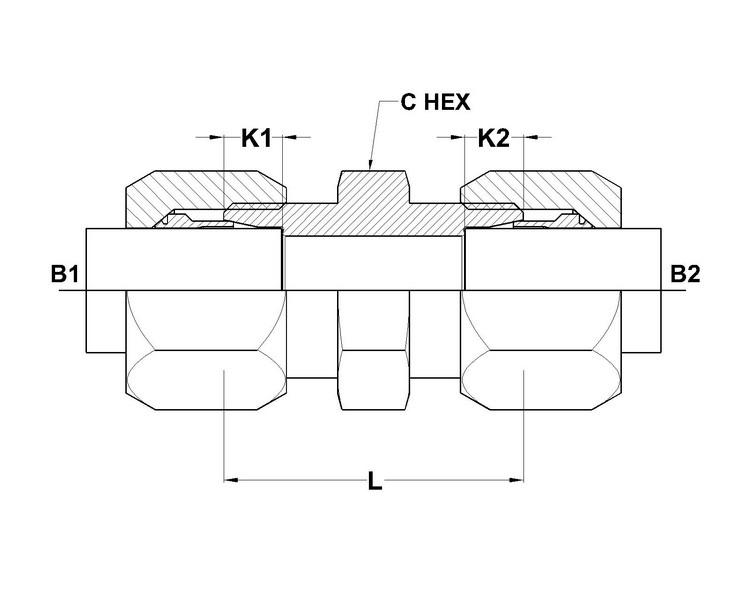

PART NO.SIZE TUBE  O.D. B1  THREAD B2  THREAD B1  DRILL B2  DRILL L  LGTH K1  DEPTH K2  DEPTH C  HEX
C2403-02-02 1/8 5/16-24 5/16-24 0.093 0.093 1.02 0.188 0.188 0.438
C2403-03-03 3/16 3/8-24 3/8-24 0.125 0.125 1.11 0.234 0.234 0.438
C2403-04-04 1/4 7/16-20 7/16-20 0.203 0.203 1.18 0.234 0.234 0.500
C2403-05-05 5/16 1/2-20. 1/2-20. 0.234 0.234 1.18 0.250 0.250 0.562
C2403-06-04 3/8 1/4 9/16-18 7/16-18 0.281 0.203 1.22 0.250 0.234 0.625
C2403-06-06 3/8 9/16-18 9/16-18 0.281 0.281 1.24 0.250 0.250 0.625
C2403-08-08 1/2 3/4-16 3/4-16 0.422 0.422 1.42 0.305 0.305 0.812
C2403-10-10 5/8 7/8-14 7/8-14 0.500 0.500 1.61 0.350 0.350 0.937
C2403-12-08 3/4 1/2 1-1/16-12 1/2-14 0.656 0.422 1.69 0.350 0.305 1.125
C2403-12-12 3/4 1-1/16-12 1-1/16-12 0.656 0.656 1.81 0.350 0.350 1.125
C2403-14-14 7/8 1-3/16-12 1-3/16-12 0.719 0.719 1.81 0.350 0.350 1.250
C2403-16-16 1 1-5/16-12 1-5/16-12 0.875 0.875 1.81 0.415 0.415 1.375
C2403-20-20 1-1/4 1-5/8-12 1-5/8-12 1.093 1.093 1.89 0.415 0.415 1.688
C2403-24-24 1-1/2 1-7/8-12 1-7/8-12 1.344 1.344 1.96 0.485 0.485 2.000
C2403-32-32 2 2-1/2-12 2-1/2-12 1.813 1.813 2.11 0.485 0.485 2.625
