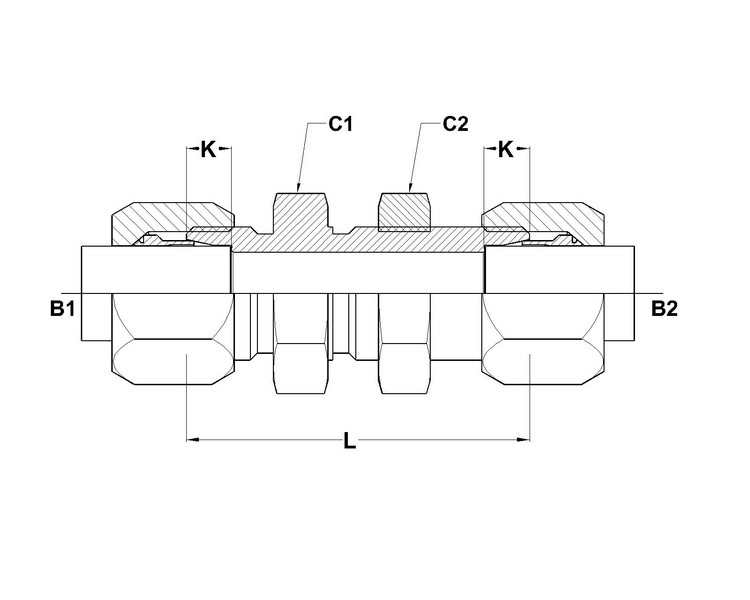

C2700 Series SAE# 080601
| PART NO. SIZE |
TUBE O.D. |
B1 THREAD |
B2 THREAD |
B1 DRILL |
B2 DRILL |
K DEPTH |
L LGTH |
C1 HEX |
C2 HEX |
| C2700-04-04 |
1/4 |
7/16-20 |
7/16-20 |
0.203 |
0.203 |
0.234 |
1.89 |
0.688 |
0.688 |
| C2700-06-06 |
3/8 |
9/16-18 |
9/16-18 |
0.281 |
0.281 |
0.250 |
1.98 |
0.813 |
0.812 |
| C2700-08-08 |
1/2 |
3/4-16 |
3/4-16 |
0.422 |
0.422 |
0.305 |
2.22 |
1.000 |
1.000 |
| C2700-10-10 |
5/8 |
7/8-14 |
7/8-14 |
0.500 |
0.500 |
0.350 |
2.48 |
1.125 |
1.125 |
| C2700-12-12 |
3/4 |
1-1/16-12 |
1-1/16-12 |
0.656 |
0.656 |
0.350 |
2.72 |
1.375 |
1.375 |
| C2700-16-16 |
1 |
1-5/16-12 |
1-5/16-12 |
0.875 |
0.875 |
0.415 |
2.72 |
1.625 |
1.625 |
