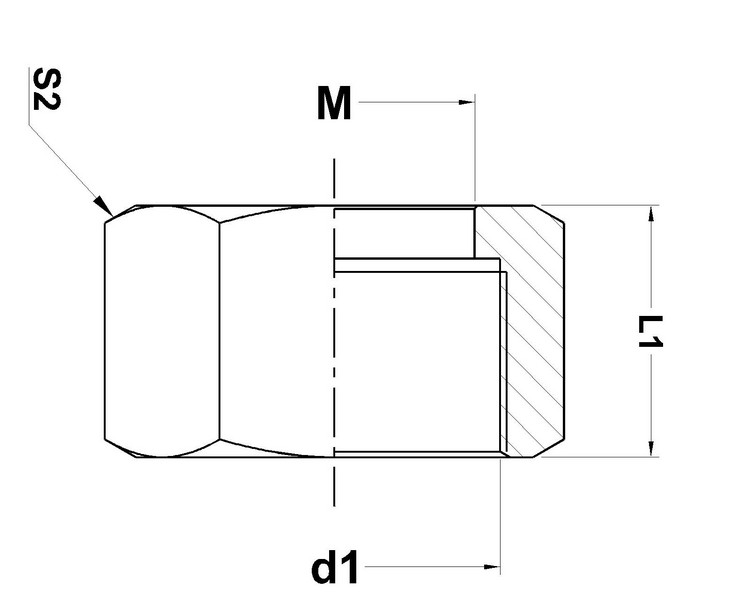

| Part No. | Series | PN Bar | Tube OD | M | l | d1 | S2 |
|---|---|---|---|---|---|---|---|
| BO-M 06-L | L | 500 | 6 | M12 X 1.5 | 17 | 7.8 | 14 |
| BO-M 08-L | L | 500 | 8 | M14 X 1.5 | 18 | 9.5 | 17 |
| BO-M 10-L | L | 500 | 10 | M16 X 1.5 | 19.5 | 11.7 | 19 |
| BO-M 12-L | L | 400 | 12 | M18 X 1.5 | 20.5 | 13.8 | 22 |
| BO-M 15-L | L | 400 | 15 | M22 X 1.5 | 23 | 17.7 | 27 |
| BO-M 18-L | L | 400 | 18 | M26 X 1.5 | 23 | 21.2 | 32 |
| BO-M 22-L | L | 250 | 22 | M30 X 2.0 | 27.5 | 24.4 | 36 |
| BO-M 28-L | L | 250 | 28 | M36 X 2.0 | 27.5 | 30.4 | 41 |
| BO-M 35-L | L | 250 | 35 | M45 X 2.0 | 30 | 38.3 | 50 |
| BO-M 42-L | L | 250 | 42 | M52 X 2.0 | 34 | 45.3 | 60 |
| BO-M 06-S | S | 630 | 6 | M14 X 1.5 | 18 | 7.8 | 17 |
| BO-M 08-S | S | 630 | 8 | M16 X 1.5 | 19 | 9.5 | 19 |
| BO-M 10-S | S | 630 | 10 | M18 X 1.5 | 20.5 | 11.7 | 22 |
| BO-M 12-S | S | 630 | 12 | M20 X 1.5 | 21 | 13.8 | 24 |
| BO-M 14-S | S | 630 | 14 | M22 X 1.5 | 23 | 17.7 | 27 |
| BO-M 16-S | S | 630 | 16 | M24 X 1.5 | 26.5 | 18.7 | 30 |
| BO-M 20-S | S | 400 | 20 | M30 X 2.0 | 27.5 | 24.4 | 36 |
| BO-M 25-S | S | 400 | 25 | M36 X 2.0 | 30.5 | 28.7 | 46 |
| BO-M 30-S | S | 400 | 30 | M42 X 2.0 | 32 | 34.2 | 50 |
| BO-M 38-S | S | 400 | 38 | M52 X 2.0 | 38 | 42.3 | 60 |
| Dimensions given approx. Temp RANGE without pressure reductions FOR 'O' Ring sealing of NBR (buna N- STD) -35° TO +100° C, FOR FPM (Viton - ON request) -25° TO +120° C. |
