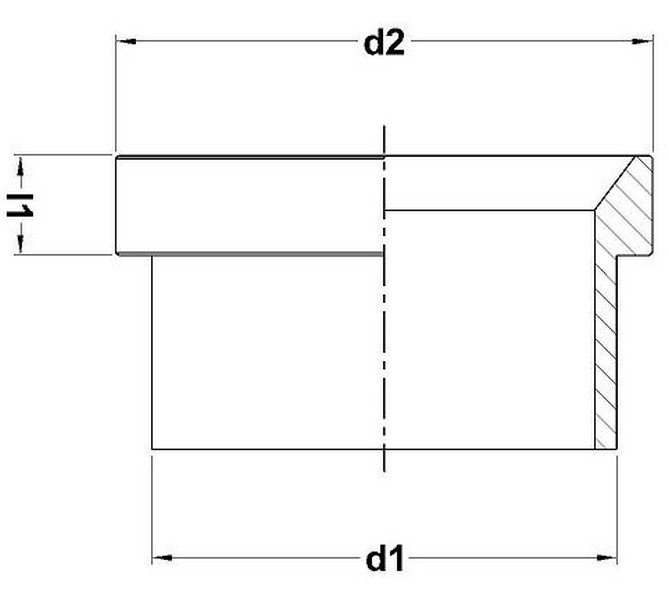

| Part No. | Series | PN Bar | Tube OD | d1 | d2 | l1 |
|---|---|---|---|---|---|---|
| BO-DR 06-L | L | 500 | 6 | 7.6 | 10.2 | 10.5 |
| BO-DR 08-L | L | 500 | 8 | 9.3 | 12.2 | 11 |
| BO-DR 10-L | L | 500 | 10 | 11.5 | 14.2 | 12.5 |
| BO-DR 12-L | L | 400 | 12 | 13.6 | 16.2 | 13 |
| BO-DR 15-L | L | 400 | 15 | 17.5 | 20.2 | 14 |
| BO-DR 18-L | L | 400 | 18 | 21 | 24.2 | 14.5 |
| BO-DR 22-L | L | 250 | 22 | 24.2 | 27.8 | 18 |
| BO-DR 28-L | L | 250 | 28 | 30.2 | 33.8 | 17 |
| BO-DR 35-L | L | 250 | 35 | 38 | 42.7 | 19 |
| BO-DR 42-L | L | 250 | 42 | 45 | 49.7 | 21 |
| BO-DR 06-S | S | 630 | 6 | 7.6 | 10.2 | 10.5 |
| BO-DR 08-S | S | 630 | 8 | 9.3 | 12.2 | 11 |
| BO-DR 10-S | S | 630 | 10 | 11.5 | 14.2 | 12.5 |
| BO-DR 12-S | S | 630 | 12 | 13.6 | 16.2 | 13 |
| BO-DR 14-S | S | 630 | 14 | 17.5 | 20.2 | 14.5 |
| BO-DR 16-S | S | 630 | 16 | 18.5 | 22 | 17 |
| BO-DR 20-S | S | 400 | 20 | 24.2 | 27.8 | 17.5 |
| BO-DR 25-S | S | 400 | 25 | 28.5 | 32.8 | 20 |
| BO-DR 30-S | S | 400 | 30 | 34 | 39 | 21.5 |
| BO-DR 38-S | S | 400 | 38 | 42 | 48.5 | 26.5 |
| Dimensions given approx. Temp RANGE without pressure reductions FOR 'O' Ring sealing of NBR (buna N- STD) -35° TO +100° C, FOR FPM (Viton - ON request) -25° TO +120° C. |
