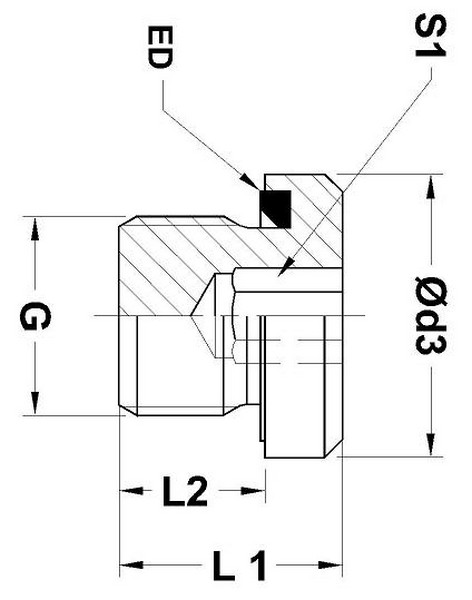

| Part No. | M | d3 | L1 | L2 | S1 |
|---|---|---|---|---|---|
| SHP M10 ED | M10 X 1.0 | 14 | 12 | 8 | 5 |
| SHP M12 ED | M12 X 1.5 | 17 | 17 | 12 | 6 |
| SHP M14 ED | M14 X 1.5 | 19 | 17 | 12 | 6 |
| SHP M16 ED | M16 X 1.5 | 21.9 | 17 | 12 | 8 |
| SHP M18 ED | M18 X 1.5 | 23.9 | 17 | 12 | 8 |
| SHP M20 ED | M20 X 1.5 | 25.9 | 19 | 14 | 10 |
| SHP M22 ED | M22 X 1.5 | 27 | 19 | 14 | 10 |
| SHP M26 ED | M26 X 1.5 | 31.9 | 21 | 16 | 12 |
| SHP M27 ED | M27 X 2.0 | 32 | 21 | 16 | 12 |
| SHP M33 ED | M33 X 2.0 | 39.9 | 22.5 | 16 | 17 |
| SHP M42 ED | M42 X 2.0 | 49.9 | 22.5 | 16 | 22 |
| SHP M48 ED | M48 X 2.0 | 55 | 22.5 | 16 | 24 |
| Dimensions given approx. fig. with tightened nut Temp range without pressure reductions for 'O' Ring sealing of NBR (buna N- Std) -35° to +100° C, for FPM (Viton - On request) -25° to +120° C. |
