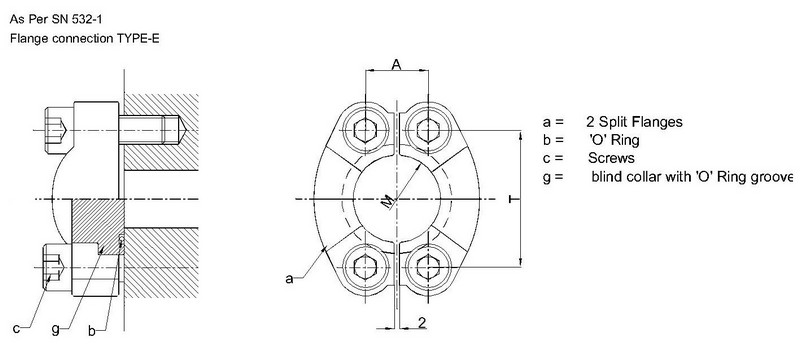

| Flange | DN | PN max. | PIPE Connection outer Ømax. | PIPE Connection Inner Ømax. | A | T | M | Bolt ISO 4762 | O' Ring SN 430 |
|---|---|---|---|---|---|---|---|---|---|
| E-1/2-6 | 1/2" | 400 | 20.0 | 14.0 | 18.2 | 40.5 | 24.6 | M8 X 30 | 18.64 X 3.53 |
| E-3/4-6 | 3/4" | 400 | 30.0 | 20.0 | 23.8 | 50.8 | 32.5 | M10 X 35 | 24.99 X 3.53 |
| E-1-6 | 1" | 400 | 38.0 | 28.0 | 27.8 | 57.2 | 38.8 | M12 X 40 | 32.92 X 3.53 |
| E-11/4-6 | 1.1/4" | 400 | 42.4 | 33.0 | 31.8 | 66.7 | 44.5 | M14 X 45 | 47.22 X 3.53 |
| E-11/2-6 | 1.1/2" | 400 | 48.3 | 42.0 | 36.5 | 79.4 | 51.6 | M16 X 50 | 47.22 X 3.53 |
| E-2-6 | 2" | 400 | 60.3 | 52.0 | 44.5 | 96.8 | 67.6 | M20 X 60 | 56.74 X 3.53 |
| E-2.1/2-6 | 2.1/2" | 320 | 76.1 | 65.0 | 58.7 | 123.8 | 89.5 | M24 X 80 | 69.44 X 3.53 |
| E-3-6 | 3" | 320 | 88.9 | 81.0 | 71.4 | 152.4 | 114.5 | M30 X 100 | 85.32 X 3.53 |
