SAE-Flanges Connection with Blind Collar
Home
Products
SAE-Flanges Connection with Blind Collar
Enquiry
Download PDF

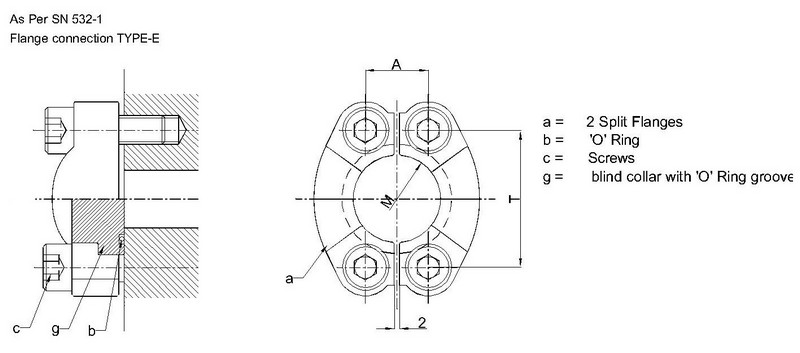

Flange Connection TYPE - E
Standard Pressure Series (SAE CODE 61)
Show
10
25
50
100
entries
Search:
Flange
DN
PN max.
PIPE Connection outer Ømax.
PIPE Connection Inner Ømax.
A
T
M
Bolt ISO 4762
O' Ring SN 430
Flange
DN
PN max.
PIPE Connection outer Ømax.
PIPE Connection Inner Ømax.
A
T
M
Bolt ISO 4762
O' Ring SN 430
E-1-3
1"
250
38.0
28.0
26.2
52.4
38.5
M10 X 30
32.92 X 3.53
E-1/2-3
1/2"
250
20.0
14.0
17.5
38.1
24.3
M8 X 25
18.64 X 3.53
E-11/2-3
1.1/2"
200
48.3
42.0
35.7
69.9
50.8
M12 X 35
47.22 X 3.53
E-11/4-3
1.1/4"
250
42.4
33.0
30.2
58.7
43.7
M10 X 35
37.69 X 3.53
E-2-3
2"
200
60.3
52.0
42.9
77.8
62.8
M12 X 35
56.74 X 3.53
E-2.1/2
2.1/2"
160
76.1
65.0
50.8
88.9
74.9
M12 X 40
69.44 X 3.53
E-3-3
3"
100
88.9
81.0
61.9
106.4
90.9
M16 X 45
85.32 X 3.53
E-3/4-3
3/4"
250
30.0
20.0
22.3
47.6
32.2
M10 X 30
24.99 X 3.53
E-4-3
4"
25
114.3
106.0
77.8
130.2
115.0
M16 X 50
110.72 X 3.53
E-5-3
5"
25
139.7
132.0
92.1
152.4
140.5
M16 X 50
136.12 X 3.53
