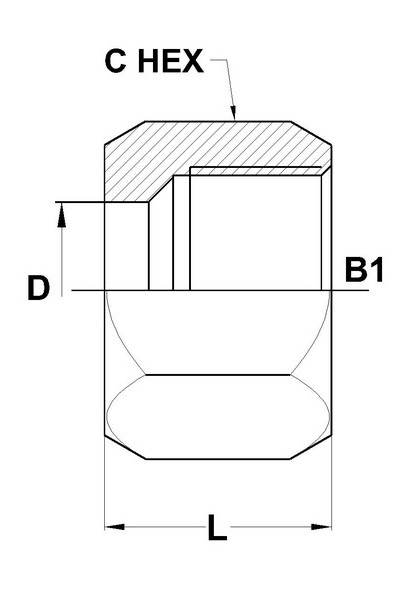

C0318 Series SAE# 080110 / MS# 51823
| PART NO.SIZE |
TUBE O.D. |
THREAD B1 |
L LGTH |
D BORE |
C HEX |
| C0318-02 |
1/8 |
5/16-24 |
0.53 |
0.130 |
0.375 |
| C0318-03 |
3/16 |
3/8-24 |
0.61 |
0.193 |
0.438 |
| C0318-04 |
1/4 |
7/16-20 |
0.70 |
0.255 |
0.562 |
| C0318-05 |
5/16 |
1/2-20 |
0.72 |
0.318 |
0.625 |
| C0318-06 |
3/8 |
9/16-18 |
0.75 |
0.380 |
0.688 |
| C0318-08 |
1/2 |
3/4-16 |
0.84 |
0.505 |
0.875 |
| C0318-10 |
5/8 |
7/8-14 |
0.92 |
0.631 |
1.000 |
| C0318-12 |
3/4 |
1-1/16-12 |
0.97 |
0.756 |
1.250 |
| C0318-14 |
7/8 |
1-3/16-12 |
1.00 |
0.881 |
1.375 |
| C0318-16 |
1 |
1-5/16-12 |
1.05 |
1.006 |
1.500 |
| C0318-20 |
1-1/4 |
1-5/8-12 |
1.05 |
1.260 |
2.000 |
| C0318-24 |
1-1/2 |
1-7/8-12 |
1.03 |
1.510 |
2.250 |
| C0318-32 |
2 |
2-1/2-12 |
1.12 |
2.014 |
2.875 |
