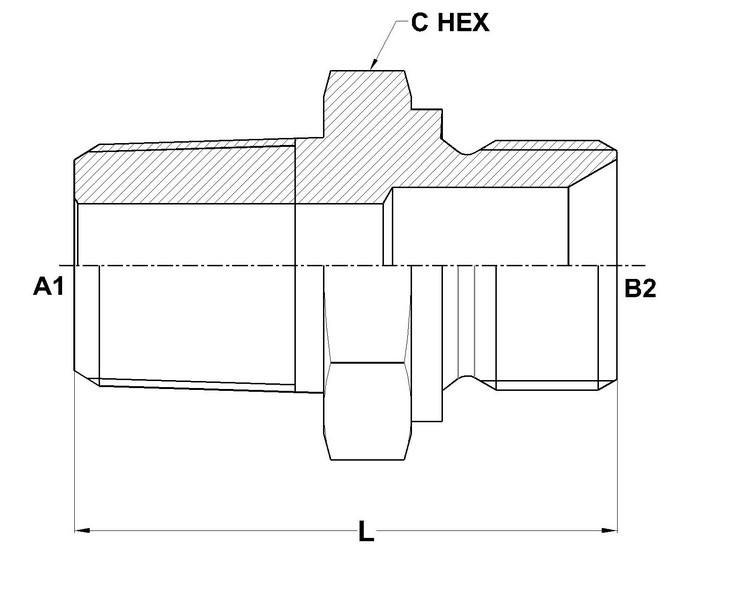

PART NO.SIZE	A1 NPTF	B2 BSPP	A1 DRILL	B2 DRILL	L LGTH	C HEX
7032-02-02	1/8-27	1/8-28	4.8	3.5	23.2	14.0
7032-02-04	1/8-27	1/4-19	4.8	4.7	28.2	19.0
7032-02-06	1/8-27	3/8-19	4.8	7.9	30.2	22.0
7032-04-02	1/4-18	1/8-28	7.0	3.5	29.1	14.0
7032-04-04	1/4-18	1/4-19	7.0	4.7	32.7	19.0
7032-04-06	1/4-18	3/8-19	7.0	7.9	34.7	22.0
7032-04-08	1/4-18	1/2-14	7.0	11.1	38.7	27.0
7032-06-02	3/8-18	1/8-28	10.3	3.5	29.1	19.0
7032-06-04	3/8-18	1/4-19	10.3	4.7	32.1	19.0
7032-06-06	3/8-18	3/8-19	10.3	7.9	34.7	22.0
7032-06-08	3/8-18	1/2-14	10.3	11.1	38.7	27.0
7032-06-12	3/8-18	3/4-14	10.3	16.7	42.7	32.0
7032-08-04	1/2-14	1/4-19	13.5	4.7	38.4	22.0
7032-08-06	1/2-14	3/8-19	13.5	7.9	39.4	22.0
7032-08-08	1/2-14	1/2-14	13.5	11.1	43.5	27.0
7032-08-10	1/2-14	5/8-14	13.5	14.3	47.5	30.0
7032-08-12	1/2-14	3/4-14	13.5	16.7	47.5	32.0
7032-08-16	1/2-14	1-11	13.5	22.2	53.5	41.0
7032-12-06	3/4-14	3/8-19	18.0	7.9	41.2	27.0
7032-12-08	3/4-14	1/2-14	18.0	11.1	43.2	27.0
7032-12-10	3/4-14	5/8-14	18.0	14.3	47.5	30.0
7032-12-12	3/4-14	3/4-14	18.0	16.7	47.5	32.0
7032-12-16	3/4-14	1-11	18.0	22.2	53.5	41.0
7032-16-08	1-11-1/2	1/2-14	23.8	11.1	48.1	36.0
7032-16-12	1-11-1/2	3/4-14	23.8	16.7	50.1	36.0
7032-16-16	1-11-1/2	1-11	23.8	22.2	58.4	41.0
7032-16-20	1-11-1/2	1-1/4-11	23.8	28.6	63.4	50.0
7032-20-12	1-1/4-11-1/2	3/4-14	31.7	16.7	52.8	42.0
7032-20-16	1-1/4-11-1/2	1-11	31.7	22.2	55.8	42.0
7032-20-20	1-1/4-11-1/2	1-1/4-11	31.7	28.6	64.1	50.0
7032-20-24	1-1/4-11-1/2	1-1/2-11	31.7	33.3	70.1	55.0
7032-24-20	1-1/2-11-1/2	1-1/4-11	38.0	28.6	59.4	50.0
7032-24-24	1-1/2-11-1/2	1-1/2-11	38.0	33.3	70.9	55.0
7032-24-32	1-1/2-11-1/2	2-11	38.0	46.0	79.9	70.0
7032-32-20	2-11-1/2	1-1/4-11	49.0	28.6	64.0	65.0
7032-32-32	2-11-1/2	2-11	49.0	46.0	80.7	70.0
