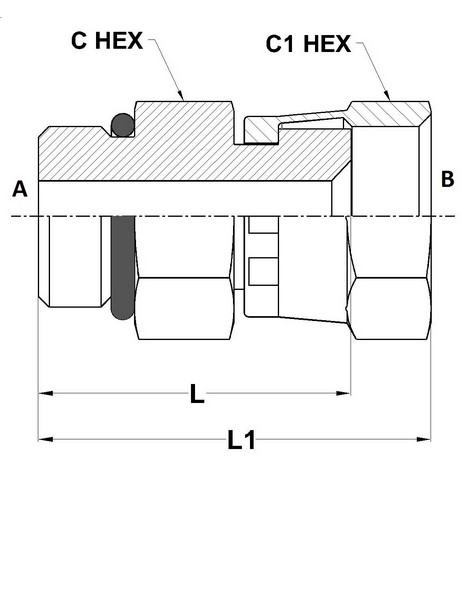

6402-O Series
| PART NO. SIZE |
TUBE O.D. |
B SAE ORB |
A SAE 37 |
B DRILL |
A DRILL |
L LGTH |
L1 LGTH |
C1 HEX |
C HEX |
| 6402-04-04-O |
1/4 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
1.02 |
1.31 |
0.562 |
0.562 |
| 6402-04-06-O |
1/4 |
7/16-20 |
9/16-18 |
0.172 |
0.297 |
1.09 |
1.42 |
0.688 |
0.562 |
| 6402-06-04-O |
3/8 |
9/16-18 |
7/16-20 |
0.297 |
0.172 |
1.08 |
1.37 |
0.562 |
0.688 |
| 6402-06-06-O |
3/8 |
9/16-18 |
9/16-18 |
0.297 |
0.297 |
1.15 |
1.48 |
0.688 |
0.688 |
| 6402-06-08-O |
3/8 |
9/16-18 |
3/4-16 |
0.297 |
0.391 |
1.20 |
1.58 |
0.875 |
0.812 |
| 6402-08-06-O |
1/2 |
3/4-16 |
9/16-18 |
0.391 |
0.297 |
1.23 |
1.56 |
0.688 |
0.875 |
| 6402-08-08-O |
1/2 |
3/4-16 |
3/4-16 |
0.391 |
0.391 |
1.28 |
1.65 |
0.875 |
0.875 |
| 6402-08-10-O |
1/2 |
3/4-16 |
7/8-14 |
0.391 |
0.484 |
1.31 |
1.76 |
1.000 |
0.875 |
| 6402-10-08-O |
5/8 |
7/8-14 |
3/4-16 |
0.484 |
0.391 |
1.40 |
1.78 |
0.875 |
1.000 |
| 6402-10-10-O |
5/8 |
7/8-14 |
7/8-14 |
0.484 |
0.484 |
1.43 |
1.88 |
1.000 |
1.000 |
| 6402-12-10-O |
3/4 |
1-1/16-12 |
7/8-14 |
0.609 |
0.484 |
1.60 |
2.05 |
1.000 |
1.250 |
| 6402-12-12-O |
3/4 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.609 |
1.63 |
2.15 |
1.250 |
1.250 |
| 6402-16-16-O |
1 |
1-5/16-12 |
1-5/16-12 |
0.846 |
0.844 |
1.72 |
2.27 |
1.500 |
1.500 |
| 6402-20-20-O |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1.078 |
1.078 |
1.85 |
2.40 |
2.000 |
1.875 |
| 6402-24-24-O |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
1.312 |
1.312 |
1.99 |
2.67 |
2.250 |
2.125 |
| 6402-32-32-O |
2 |
2-1/2-12 |
2-1/2-12 |
1.781 |
1.781 |
2.18 |
3.07 |
2.875 |
2.750 |
