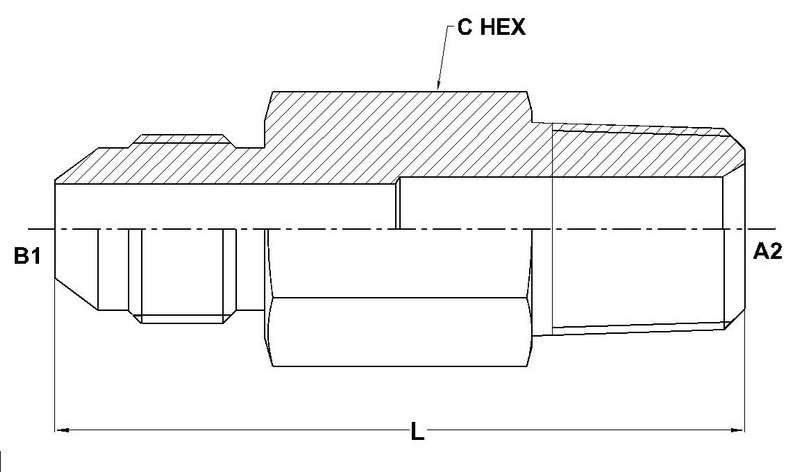

2404-LL Series
| PART NO. SIZE |
TUBE O.D. |
B1 SAE 37 |
A2 NPTF |
B1 DRILL |
A2 DRILL |
L LGTH |
C HEX |
| 2404-LL-04-02 |
1/4 |
7/16-20 |
1/8-27 |
0.172 |
0.188 |
2.56 |
0.500 |
| 2404-LL-04-04 |
1/4 |
7/16-20 |
1/4-18 |
0.172 |
0.281 |
3.25 |
0.625 |
| 2404-LL-05-02 |
5/16 |
1/2-20 |
1/8-27 |
0.234 |
0.188 |
2.81 |
0.562 |
| 2404-LL-06-04 |
3/8 |
9/16-18 |
1/4-18 |
0.297 |
0.281 |
3.25 |
0.625 |
| 2404-LL-06-06 |
3/8 |
9/16-18 |
3/8-18 |
0.297 |
0.406 |
3.92 |
0.812 |
| 2404-LL-08-06 |
1/2 |
3/4-16 |
3/8-18 |
0.391 |
0.406 |
4.00 |
0.812 |
| 2404-LL-08-08 |
1/2 |
3/4-16 |
1/2-14 |
0.391 |
0.531 |
4.20 |
0.875 |
| 2404-LL-10-08 |
5/8 |
7/8-14 |
1/2-14 |
0.484 |
0.531 |
4.38 |
0.937 |
| 2404-LL-12-12 |
3/4 |
1-1/16-12 |
3/4-14 |
0.609 |
0.719 |
5.00 |
1.125 |
| 2404-LL-16-12 |
1 |
1-5/16-12 |
3/4-14 |
0.844 |
0.719 |
5.56 |
1.375 |
| 2404-LL-16-16 |
1 |
1-5/16-12 |
1-11 1/2 |
0.844 |
0.938 |
5.75 |
1.375 |
