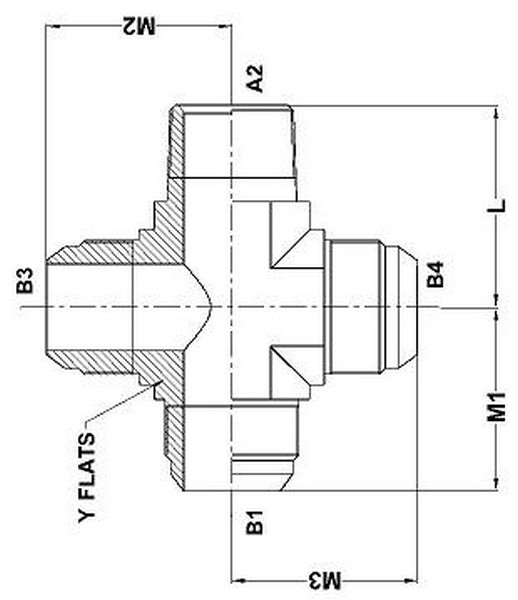

2651 Series
| PART NO.SIZE |
TUBE O.D. |
B1 SAE 37 |
A2 NPTF |
B3 SAE 37 |
B4 SAE 37 |
B1 DRILL |
A2 DRILL |
B3 DRILL |
B4 DRILL |
M1 LGTH |
L LGTH |
M2 LGTH |
M3 LGTH |
Y FLATS |
| 2651-04-04-04-04-FG |
1/4 |
7/16-20 |
1/4-18 |
7/16-20 |
7/16-20 |
0.172 |
0.281 |
0.172 |
0.172 |
1.05 |
1.09 |
1.05 |
1.05 |
0.562 |
| 2651-06-06-04-06-FG |
3/8 |
9/16-18 |
3/8-18 |
7/16-20 |
9/16-18 |
0.297 |
0.406 |
0.172 |
0.297 |
1.14 |
1.22 |
1.12 |
1.14 |
0.750 |
| 2651-06-04-06-06-FG |
3/8 |
9/16-18 |
1/4-18 |
9/16-18 |
9/16-18 |
0.297 |
0.281 |
0.297 |
0.297 |
1.06 |
1.09 |
1.06 |
1.06 |
0.562 |
| 2651-06-06-06-06-FG |
3/8 |
9/16-18 |
3/8-18 |
9/16-18 |
9/16-18 |
0.297 |
0.406 |
0.297 |
0.297 |
1.14 |
1.22 |
1.14 |
1.14 |
0.750 |
| 2651-08-08-08-08-FG |
1/2 |
3/4-16 |
1/2-14 |
3/4-16 |
3/4-16 |
0.391 |
0.531 |
0.391 |
0.391 |
1.33 |
1.47 |
1.33 |
1.33 |
0.875 |
| 2651-12-12-12-12-FG |
3/4 |
1-1/16-12 |
3/4-14 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.719 |
0.609 |
0.609 |
1.66 |
1.59 |
1.66 |
1.66 |
1.062 |
| 2651-16-16-16-16-FG |
1 |
1-5/16-12 |
1-11-1/2 |
1-5/16-12 |
1-5/16-12 |
0.844 |
0.938 |
0.844 |
0.844 |
1.81 |
1.97 |
1.81 |
1.81 |
1.312 |
