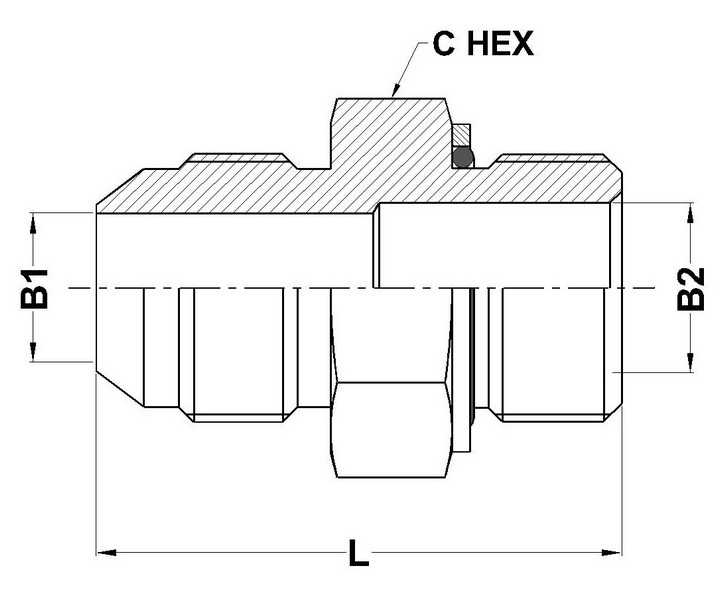

7001 Series
| PART NO.SIZE |
TUBE O.D. |
B1 JIC |
B2 THREAD |
B1 DRILL |
B2 DRILL |
L LGTH |
C HEX |
| 7001-04-10 |
1/4 |
7/16-20 |
M10 x 1 |
4.4 |
4.5 |
27.5 |
16.0 |
| 7001-04-12 |
1/4 |
7/16-20 |
M12 x 1.5 |
4.4 |
6.0 |
33.0 |
19.0 |
| 7001-04-14 |
1/4 |
7/16-20 |
M14 x 1.5 |
4.4 |
7.5 |
33.0 |
19.0 |
| 7001-05-12 |
5/16 |
1/2-20 |
M12 x 1.5 |
6.0 |
6.0 |
33.0 |
19.0 |
| 7001-06-14 |
3/8 |
9/16-18 |
M14 x 1.5 |
7.5 |
7.5 |
33.1 |
19.0 |
| 7001-06-16 |
3/8 |
9/16-18 |
M16 x 1.5 |
7.5 |
9.0 |
34.6 |
22.0 |
| 7001-08-16 |
1/2 |
3/4-16 |
M16 x 1.5 |
9.9 |
9.0 |
37.2 |
22.0 |
| 7001-08-18 |
1/2 |
3/4-16 |
M18 x 1.5 |
9.9 |
11.0 |
37.2 |
24.0 |
| 7001-08-22 |
1/2 |
3/4-16 |
M22 x 1.5 |
9.9 |
14.0 |
40.7 |
27.0 |
| 7001-10-18 |
5/8 |
7/8-14 |
M18 x 1.5 |
12.3 |
11.0 |
39.8 |
24.0 |
| 7001-10-20 |
5/8 |
7/8-14 |
M20 x 1.5 |
12.3 |
12.5 |
40.3 |
27.0 |
| 7001-10-22 |
5/8 |
7/8-14 |
M22 x 1.5 |
12.3 |
14.0 |
43.3 |
27.0 |
| 7001-12-22 |
3/4 |
1-1/16-12 |
M22 x 1.5 |
15.5 |
14.0 |
45.9 |
27.0 |
| 7001-12-27 |
3/4 |
1-1/16-12 |
M27 x 2 |
15.5 |
18.0 |
47.9 |
32.0 |
| 7001-16-33 |
1 |
1-5/16-12 |
M33 x 2 |
21.5 |
23.0 |
52.1 |
41.0 |
| 7001-20-42 |
1-1/4 |
1-5/8-12 |
M42 x 2 |
27.5 |
30.0 |
56.3 |
50.0 |
| 7001-24-48 |
1-1/2 |
1-7/8-12 |
M48 x 2 |
33.0 |
36.0 |
63.5 |
55.0 |
