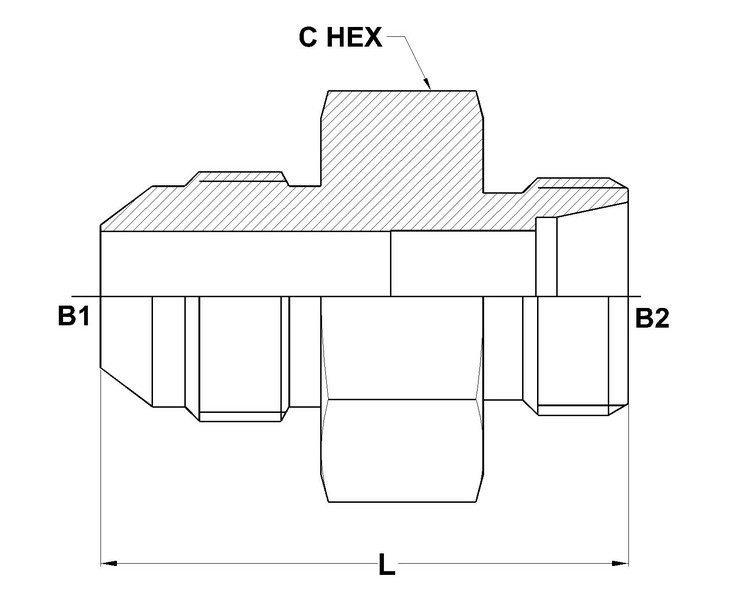

| PART NO.SIZE | B1 TUBE O.D. | B2 TUBE O.D. | B1 JIC | B2 MM | B1 DRILL | B2 DRILL | L LGTH | C HEX |
|---|---|---|---|---|---|---|---|---|
| 7005-04-L06-12 | 1/4 | 06 | 7/16-20 | M12 x 1.5 | 4.4 | 4.0 | 30.8 | 12.0 |
| 7005-04-L08-14 | 1/4 | 08 | 7/16-20 | M14 x 1.5 | 4.4 | 6.0 | 29.0 | 14.0 |
| 7005-06-L08-14 | 3/8 | 08 | 9/16-18 | M14 x 1.5 | 7.5 | 6.0 | 31.7 | 17.0 |
| 7005-06-L10-16 | 3/8 | 10 | 9/16-18 | M16 x 1.5 | 7.5 | 8.0 | 32.7 | 17.0 |
| 7005-06-L12-18 | 3/8 | 12 | 9/16-18 | M18 x 1.5 | 7.5 | 10.0 | 31.1 | 19.0 |
| 7005-08-L10-16 | 1/2 | 10 | 3/4-16 | M16 x 1.5 | 9.9 | 8.0 | 35.4 | 19.0 |
| 7005-08-L12-18 | 1/2 | 12 | 3/4-16 | M18 x 1.5 | 9.9 | 10.0 | 35.4 | 19.0 |
| 7005-08-L15-22 | 1/2 | 15 | 3/4-16 | M22 x 1.5 | 9.9 | 12.0 | 34.7 | 24.0 |
| 7005-10-L15-22 | 5/8 | 15 | 7/8-14 | M22 x 1.5 | 12.3 | 12.0 | 40.5 | 24.0 |
| 7005-10-L18-26 | 5/8 | 18 | 7/8-14 | M26 x 1.5 | 12.3 | 15.0 | 38.3 | 27.0 |
| 7005-12-L15-22 | 3/4 | 15 | 1-1/16-12 | M22 x 1.5 | 15.5 | 12.0 | 45.0 | 27.0 |
| 7005-12-L18-26 | 3/4 | 18 | 1-1/16-12 | M26 x 1.5 | 15.5 | 15.0 | 45.0 | 27.0 |
| 7005-12-L22-30 | 3/4 | 22 | 1-1/16-12 | M30 x 2 | 15.5 | 19.0 | 42.9 | 32.0 |
| 7005-12-L28-36 | 3/4 | 28 | 1-1/16-12 | M36 x 2 | 15.5 | 24.0 | 43.9 | 41.0 |
| 7005-16-L22-30 | 1 | 22 | 1-5/16-12 | M30 x 2 | 21.5 | 19.0 | 48.1 | 36.0 |
| 7005-16-L28-36 | 1 | 28 | 1-5/16-12 | M36 x 2 | 21.5 | 24.0 | 45.1 | 41.0 |
| 7005-16-L35-45 | 1 | 35 | 1-5/16-12 | M45 x 2 | 21.5 | 30.0 | 48.1 | 46.0 |
| 7005-20-L35-45 | 1-1/4 | 35 | 1-5/8-12 | M45 x 2 | 27.5 | 30.0 | 53.4 | 46.0 |
| 7005-24-L42-52 | 1-1/2 | 42 | 1-7/8-12 | M52 x 2 | 33.0 | 36.0 | 54.5 | 55.0 |
